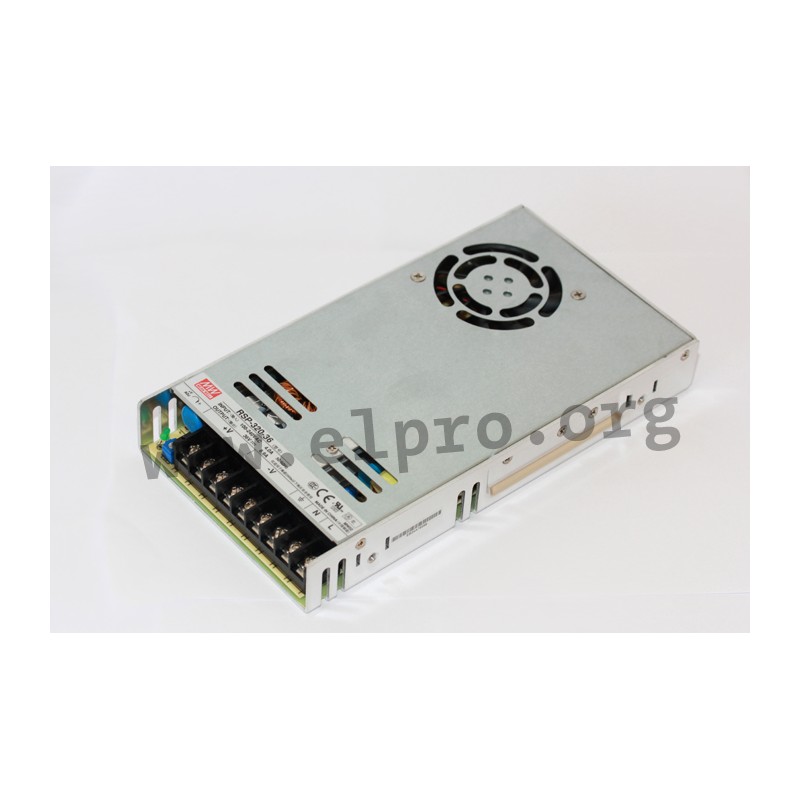

RSP-320-7.5

Mean Well power supply series RSP-300

Switching power supplies with 320W, a built-in fan, universal input and screw terminals are available from Mean Well. These devices come in an enclosed housing (1U) and feature a built-in active PFC function as well as protection against overload (auto recovery), short circuit, and overvoltage. They meet EN62368-1 safety standards along with EN55032 class B EMC standards while also having low height specifications. We offer the following types of this Mean Well series: RSP-320-2.5, RSP-320-3.3, RSP-320-4, RSP-320-5, RSP-320-7.5, RSP-320-12, RSP-320-13.5, RSP-320-15, RSP-320-24, RSP-320-27, RSP-320-36 and RSP-320-48.

  • single output
  • output: 150 to 321,6W
  • input voltage: 88 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 1mA
  • output voltage adjustment: ±10%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 900g

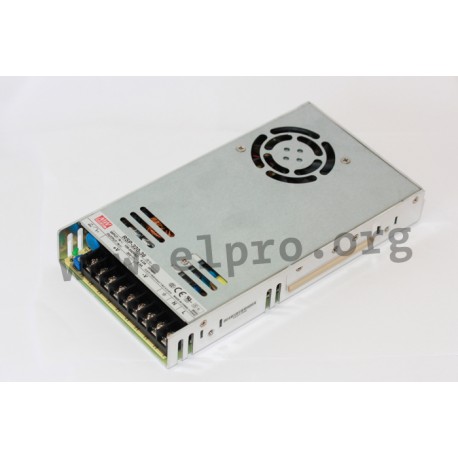

RSP-320-7.5, Mean Well switching power supplies, 320W, 19", RSP-320 series

RSP-320-7.5

135761 RSP-320-7.5 RSP-320-7.5 4711287436067 Mean Well power supply series RSP-300. Switching power supplies with 320W, a built-in fan, universal input and screw terminals are available from Mean Well. These devices come in an enclosed housing (1U) and feature a built-in active PFC function as well as protection against overload (auto recovery), short circuit, and overvoltage. They meet EN62368-1 safety standards along with EN55032 class B EMC standards while also having low height specifications. We offer the following types of this Mean Well series: RSP-320-2.5, RSP-320-3.3, RSP-320-4, RSP-320-5, RSP-320-7.5, RSP-320-12, RSP-320-13.5, RSP-320-15, RSP-320-24, RSP-320-27, RSP-320-36 and RSP-320-48. single output output: 150 to 321,6W input voltage: 88 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A maximal leakage current: 1mA output voltage adjustment: ±10% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 900g

Specifications

manufacturer
Manufacturer's name RSP-320-7.5
GTIN 4711287436067
Output voltage [V] 7,5
Efficiency [%] 88
Output current range [A] 0...40
Output power [W] 300
Ripple [mVp-p] 150
Data Sheet

Unit price

43,99 €

Volume discounts

Quantity Unit price
50 + 42,59 €

Stock: 18
Next incoming goods:
CW 13/2025
60 units

Further delivery:
CW 16/2025
