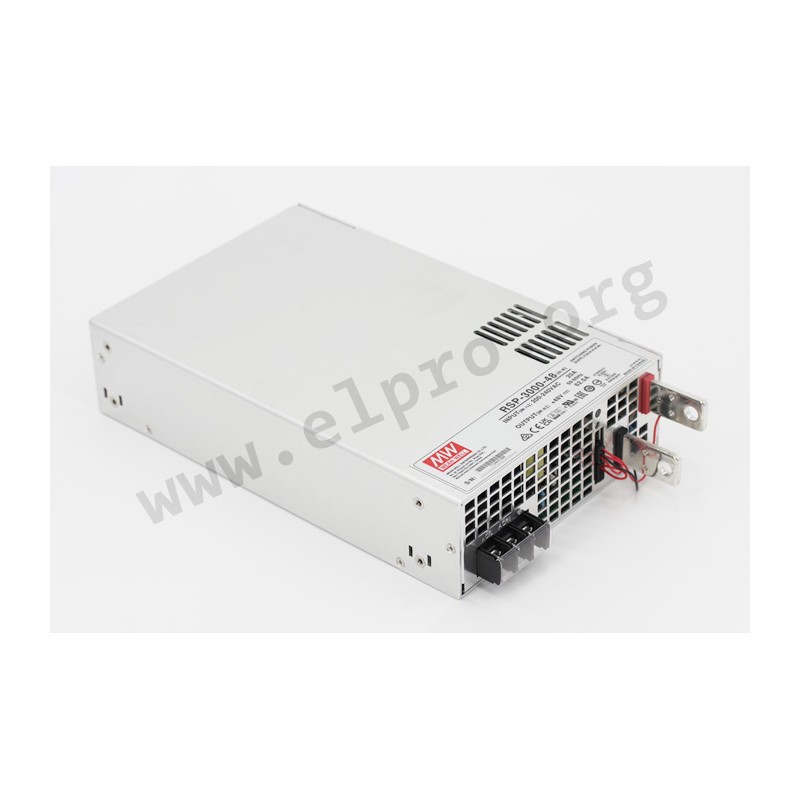

RSP-3000-24

Mean Well power supply series RSP-3000

Switching power supplies in an enclosed housing with 3000W, a built-in remote sense function, a power OK signal, a fan, a built-in auxiliary power (12V/0,1A), a parallel function, a built-in remote ON/OFF signal, screw terminals, a low no-load power and an active AC input current limitation. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 9000W (2+1 units) as well as for control cabinet mounting and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-3000-12, RSP-3000-24 and RSP-3000-48.

  • single output
  • output: 2400 to 3000W
  • input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <2mA
  • output voltage adjustment: ±10%
  • overload protection: 100 to 112%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 4000g

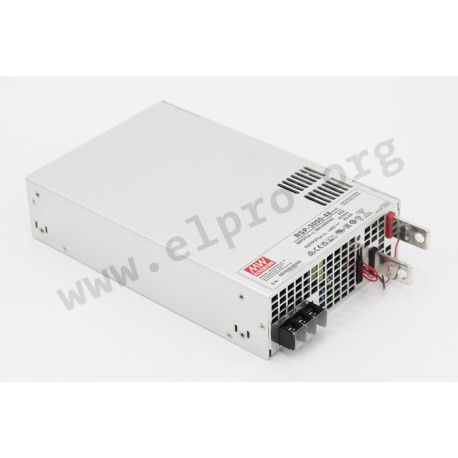

RSP-3000-24, Mean Well switching power supplies, 3000W, parallel function, RSP-3000 series

RSP-3000-24

35121 RSP-3000-24 RSP-3000-24 4711287438078 Mean Well power supply series RSP-3000. Switching power supplies in an enclosed housing with 3000W, a built-in remote sense function, a power OK signal, a fan, a built-in auxiliary power (12V/0,1A), a parallel function, a built-in remote ON/OFF signal, screw terminals, a low no-load power and an active AC input current limitation. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 9000W (2+1 units) as well as for control cabinet mounting and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-3000-12, RSP-3000-24 and RSP-3000-48. single output output: 2400 to 3000W input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC maximal input inrush current: 60A leakage current: &lt;2mA output voltage adjustment: ±10% overload protection: 100 to 112% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 4000g

Specifications

manufacturer
Manufacturer's name RSP-3000-24
GTIN 4711287438078
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 90
Output current range [A] 0...125
Output voltage tolerance: [%] 1
Output power [W] 3000
Ripple [mVp-p] 150
Data Sheet

Unit price

444,19 €

Stock: 87
