RSP-2400-12

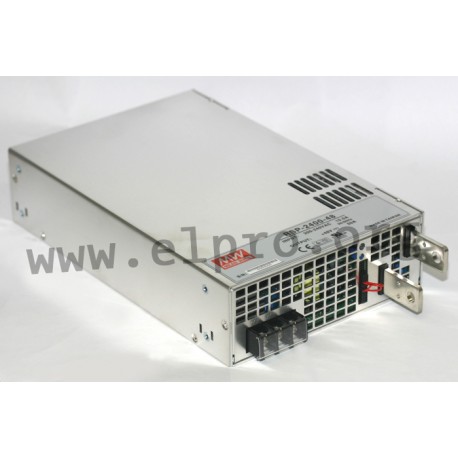

Mean Well power supply series RSP-2400

Switching power supplies in an enclosed housing with 2400W, a parallel function, a built-in remote ON/OFF control, a power fail signal, a built-in remote sense function, screw terminals, a fan, a built-in auxiliary power (12V/0,1A), a low no-load power and an active AC input current limiting. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 7200W (2+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-2400-12, RSP-2400-24 and RSP-2400-48.

  • single output
  • output: 2000,4 to 2400W
  • input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <2mA
  • output voltage adjustment: ±10%
  • overload protection: 100 to 112%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 3300g
RSP-2400-12

RSP-2400-12

35118 RSP-2400-12 RSP-2400-12 4711287438030 Mean Well power supply series RSP-2400. Switching power supplies in an enclosed housing with 2400W, a parallel function, a built-in remote ON/OFF control, a power fail signal, a built-in remote sense function, screw terminals, a fan, a built-in auxiliary power (12V/0,1A), a low no-load power and an active AC input current limiting. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 7200W (2+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-2400-12, RSP-2400-24 and RSP-2400-48. single output output: 2000,4 to 2400W input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC maximal input inrush current: 60A leakage current: &lt;2mA output voltage adjustment: ±10% overload protection: 100 to 112% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 3300g

Specifications

manufacturer
Manufacturer's name RSP-2400-12
GTIN 4711287438030
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...166,7
Output voltage tolerance: [%] 1
Output power [W] 2000,4
Ripple [mVp-p] 150
Data Sheet

Unit price

407,49 €

Stock: 42
Further delivery:
CW 12/2025
