RSP-1600-48CAN

Mean Well power supply series RSP-1600

Switching power supplies in an enclosed housing with 1600W, screw terminals, a built-in auxiliary power (12V/0,8A), a parallel function, a power fail signal, a built-in remote ON/OFF control, a fan, a low profile (1U), a built-in remote sense function and a universal input. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") as well as for active current sharing of up to 9600W (5+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-1600-12, RSP-1600-24, RSP-1600-24CAN, RSP-1600-27, RSP-1600-27CAN, RSP-1600-36, RSP-1600-48 und RSP-1600-48CAN.

  • single output
  • output: 1500 to 1608W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <2mA
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 2100g

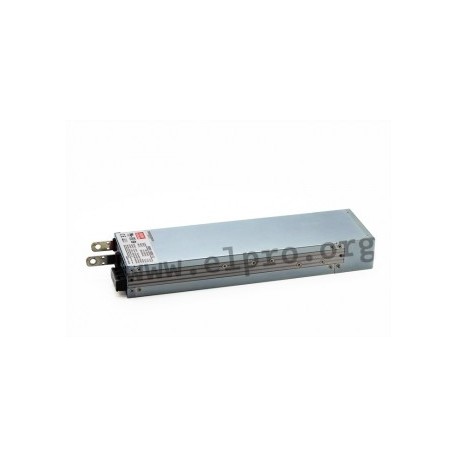

RSP-1600-48CAN, Mean Well switching power supplies, 1600W, 19", RSP-1600 series

RSP-1600-48CAN

248617 RSP-1600-48CAN RSP-1600-48CAN Mean Well power supply series RSP-1600. Switching power supplies in an enclosed housing with 1600W, screw terminals, a built-in auxiliary power (12V/0,8A), a parallel function, a power fail signal, a built-in remote ON/OFF control, a fan, a low profile (1U), a built-in remote sense function and a universal input. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") as well as for active current sharing of up to 9600W (5+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-1600-12, RSP-1600-24, RSP-1600-24CAN, RSP-1600-27, RSP-1600-27CAN, RSP-1600-36, RSP-1600-48 und RSP-1600-48CAN. single output output: 1500 to 1608W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A leakage current: &lt;2mA overload protection: 105 to 115% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C weight: 2100g

Specifications

manufacturer
Manufacturer's name RSP-1600-48CAN
Output voltage [V] 48
Efficiency [%] 93
Output current range [A] 0...33,5
Output voltage tolerance: [%] 1
Output power [W] 1608
Ripple [mVp-p] 300
Data Sheet

Unit price

452,39 €

Stock: 2
Further delivery:
CW 16/2025
