RSP-150-5

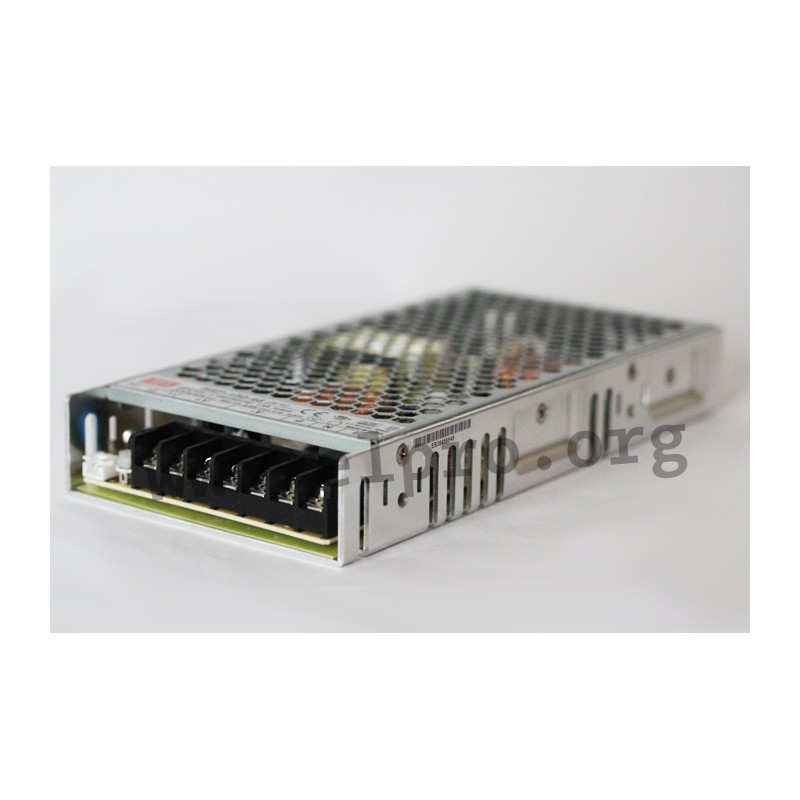

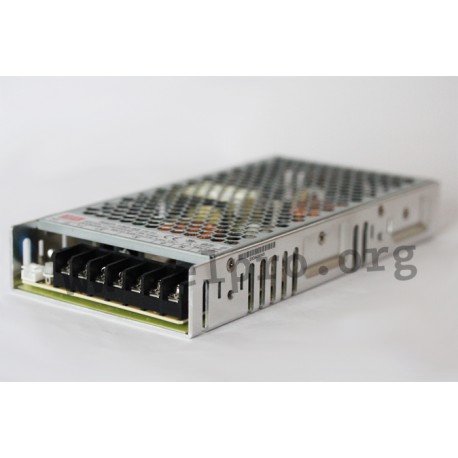

Mean Well power supply series RSP-150

Switching power supplies in an enclosed housing with 150W, a universal input, screw terminals and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RSP-150-3.3, RSP-150-5, RSP-150-7.5, RSP-150-12, RSP-150-13.5, RSP-150-15, RSP-150-24, RSP-150-27 and RSP-150-48.

  • single output
  • output: 99 to 153,6W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment: -5/+10%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 600g

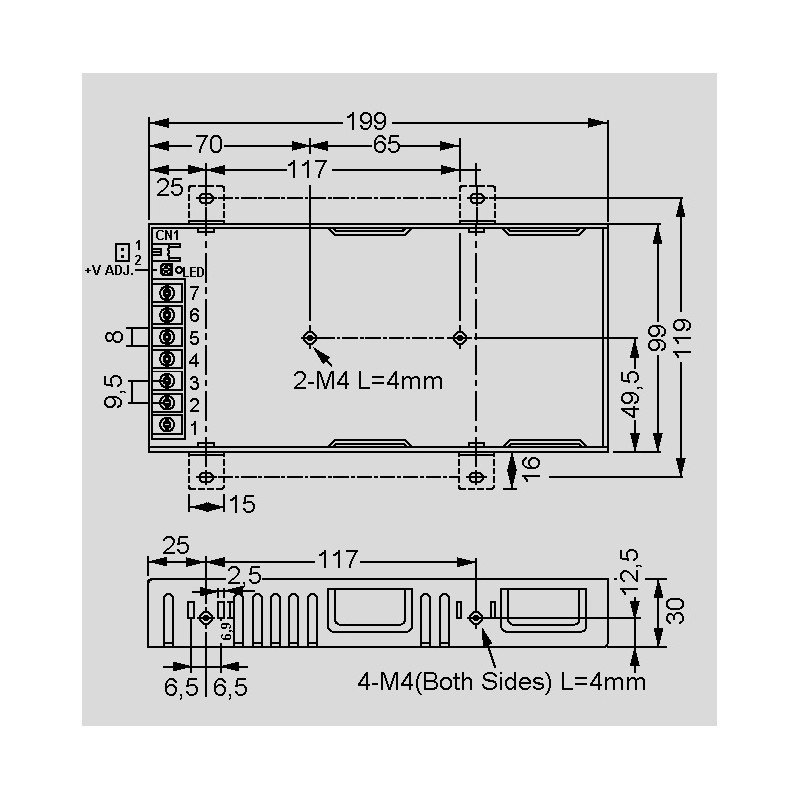

dimensions and terminal pin assignment

RSP-150-5

41456 RSP-150-5 RSP-150-5 4711287435749 Mean Well power supply series RSP-150. Switching power supplies in an enclosed housing with 150W, a&nbsp;universal input, screw terminals and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RSP-150-3.3, RSP-150-5, RSP-150-7.5, RSP-150-12, RSP-150-13.5, RSP-150-15, RSP-150-24, RSP-150-27 and RSP-150-48. single output output: 99 to 153,6W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A leakage current: &lt;2mA output voltage adjustment: -5/+10% overload protection: 105 to 135% withstand voltage&nbsp;I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 600g

Specifications

manufacturer
Manufacturer's name RSP-150-5
GTIN 4711287435749
Output voltage [V] 5
Phase 2 phase
Efficiency [%] 87
Output current range [A] 0...30
Output voltage tolerance: [%] 2
Output power [W] 150
Ripple [mVp-p] 100
Data Sheet

Unit price

33,19 €

Volume discounts

Quantity Unit price
50 + 30,89 €

Stock: 193
