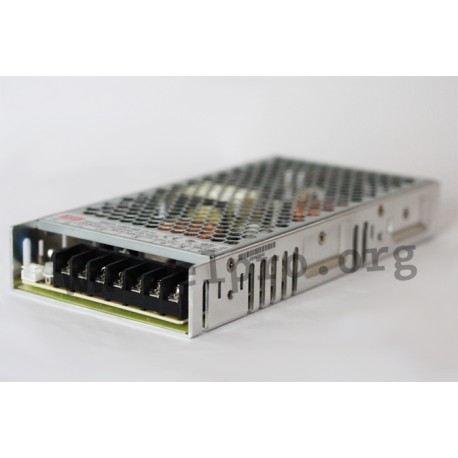

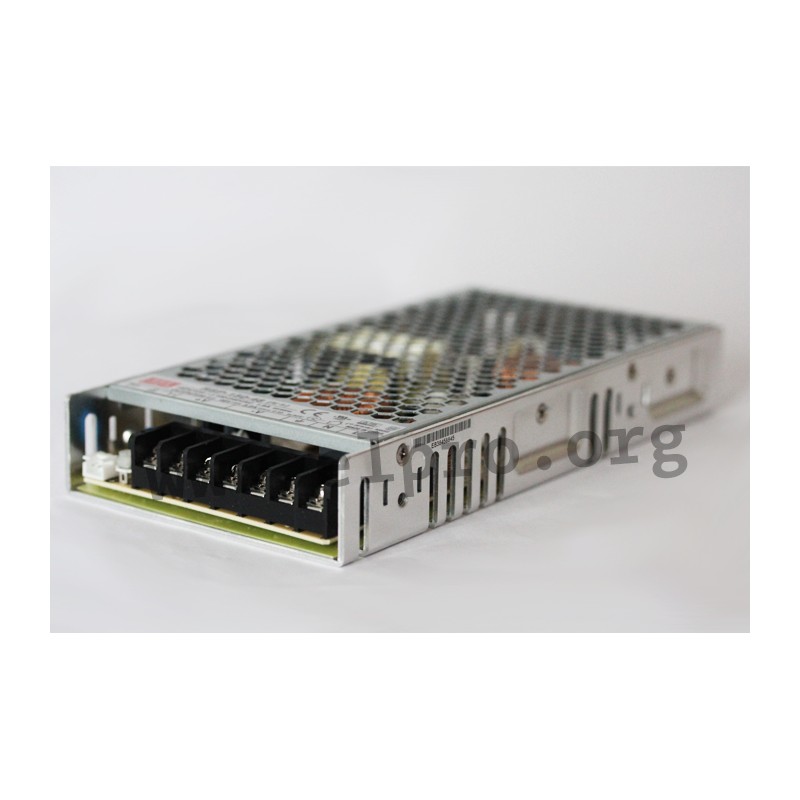

Switching power supplies in an enclosed housing with 150W, a universal input, screw terminals and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RSP-150-3.3, RSP-150-5, RSP-150-7.5, RSP-150-12, RSP-150-13.5, RSP-150-15, RSP-150-24, RSP-150-27 and RSP-150-48.
manufacturer | Mean Well |
Manufacturer's name | RSP-150-3.3 |
GTIN | 4711287435800 |
Phase | 2 phase |
Efficiency [%] | 81,5 |
Output current range [A] | 0...30 |
Output voltage tolerance: [%] | 2 |
Output power [W] | 99 |
Ripple [mVp-p] | 100 |
