RSP-1000-24

Mean Well power supply series RSP-1000

Switching power supplies in an enclosed housing with 1000W, a universal input, screw terminals, a fan, a low profile (1U/19"), a parallel function, a built-in auxiliary power (5V/0,5A), a DC OK signal, a built-in remote sense function and a built-in remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an active current sharing of up to 4000W (3+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-1000-12, RSP-1000-15, RSP-1000-24, RSP-1000-27 and RSP-1000-48.

  • single output
  • output: 720 to 1008W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment: ±10%
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C
  • weight: 1950g

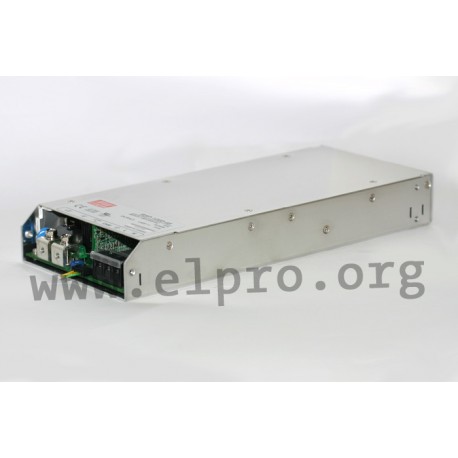

MeanWell RSP-1000 series

RSP-1000-24

29365 RSP-1000-24 RSP-1000-24 4711287420608 Mean Well power supply series RSP-1000. Switching power supplies in an enclosed housing with 1000W, a universal input, screw terminals, a fan, a low profile (1U/19"), a parallel function, a built-in auxiliary power (5V/0,5A), a DC OK signal, a built-in remote sense function and a built-in remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an active current sharing of up to 4000W (3+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-1000-12, RSP-1000-15, RSP-1000-24, RSP-1000-27 and RSP-1000-48. single output output: 720 to 1008W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A leakage current: &lt;2mA output voltage adjustment: ±10% overload protection: 105 to 125% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60°C weight: 1950g

Specifications

manufacturer
Manufacturer's name RSP-1000-24
GTIN 4711287420608
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...40
Output voltage tolerance: [%] 1
Output power [W] 960
Ripple [mVp-p] 150
Data Sheet

Unit price

205,29 €

Volume discounts

Quantity Unit price
50 + 199,99 €

Stock: 246
Next incoming goods:
CW 09/2025
204 units

Further delivery:
CW 12/2025
