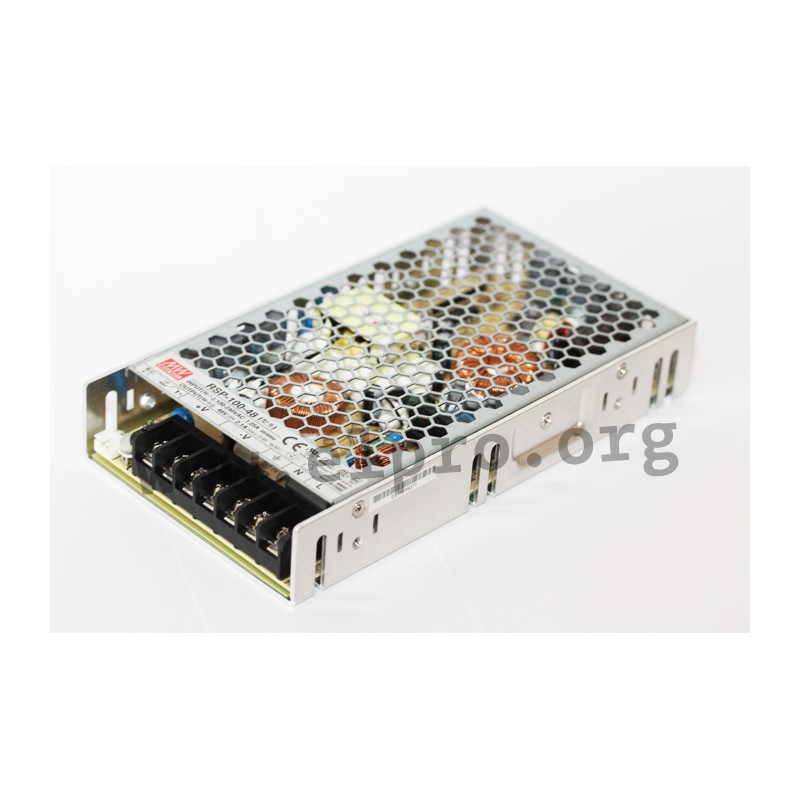

RSP-100-12

Mean Well power supply series RSP-100

Switching power supplies in an enclosed housing with 100W, a low profile (1U), screw terminals and a universal input. These devices are suitable for control cabinet mounting (19") and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control as well as a built-in active PFC function and comply with UL/EN62368-1, EN61558-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RSP-100-3.3, RSP-100-5, RSP-100-7.5, RSP-100-12, RSP-100-13.5, RSP-100-15, RSP-100-24, RSP-100-27 and RSP-100-48.

  • single output
  • output: 66 to 102,6W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 30A
  • leakage current: <2mA
  • output voltage adjustment: -5/+10%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 520g

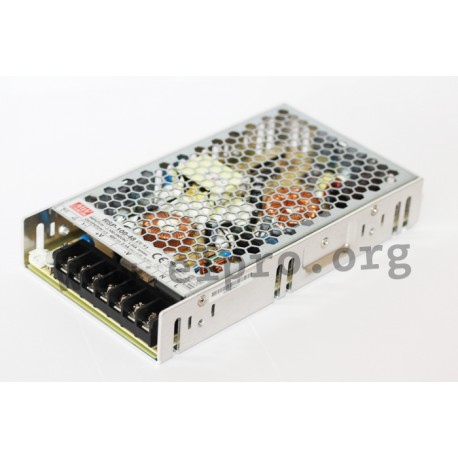

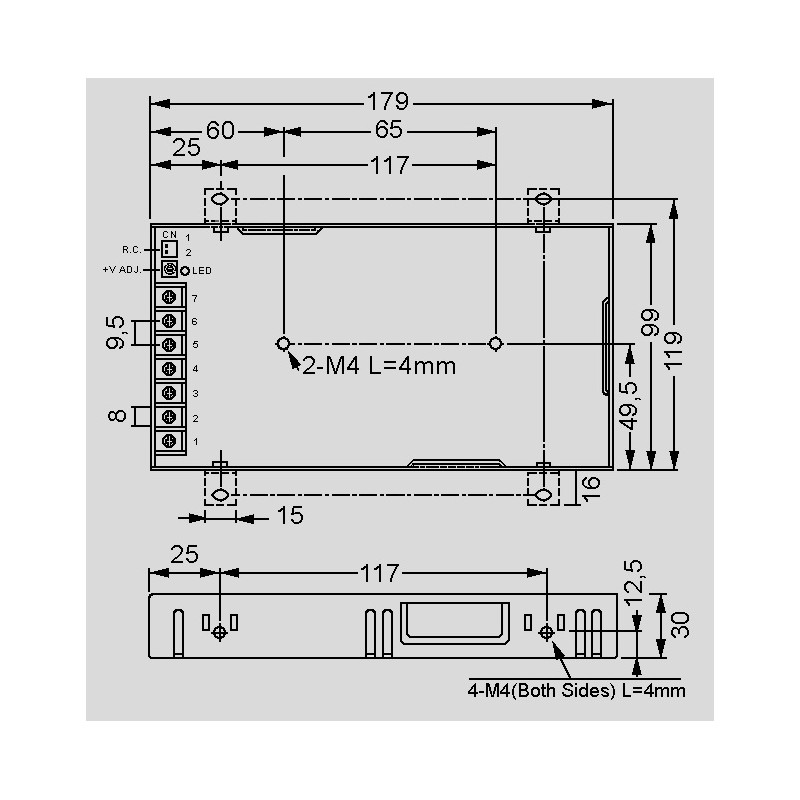

dimensions

RSP-100-12

43586 RSP-100-12 RSP-100-12 4711287435664 Mean Well power supply series&nbsp;RSP-100. Switching power supplies in an enclosed housing with 100W, a low profile (1U), screw terminals and a universal input. These devices are suitable for control cabinet mounting (19") and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control as well as a&nbsp;built-in active PFC function and comply with&nbsp;UL/EN62368-1, EN61558-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RSP-100-3.3, RSP-100-5, RSP-100-7.5, RSP-100-12, RSP-100-13.5, RSP-100-15, RSP-100-24, RSP-100-27 and RSP-100-48. single output output: 66 to 102,6W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 30A leakage current: &lt;2mA output voltage adjustment: -5/+10% overload protection: 105 to 135% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 520g

Specifications

manufacturer
Manufacturer's name RSP-100-12
GTIN 4711287435664
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 86
Output current range [A] 0...8,5
Output voltage tolerance: [%] 1
Output power [W] 102
Ripple [mVp-p] 100
Data Sheet

Unit price

31,09 €

Volume discounts

Quantity Unit price
50 + 28,89 €

Stock: 98
Next incoming goods:
CW 03/2025
62 units

Further delivery:
CW 12/2025
