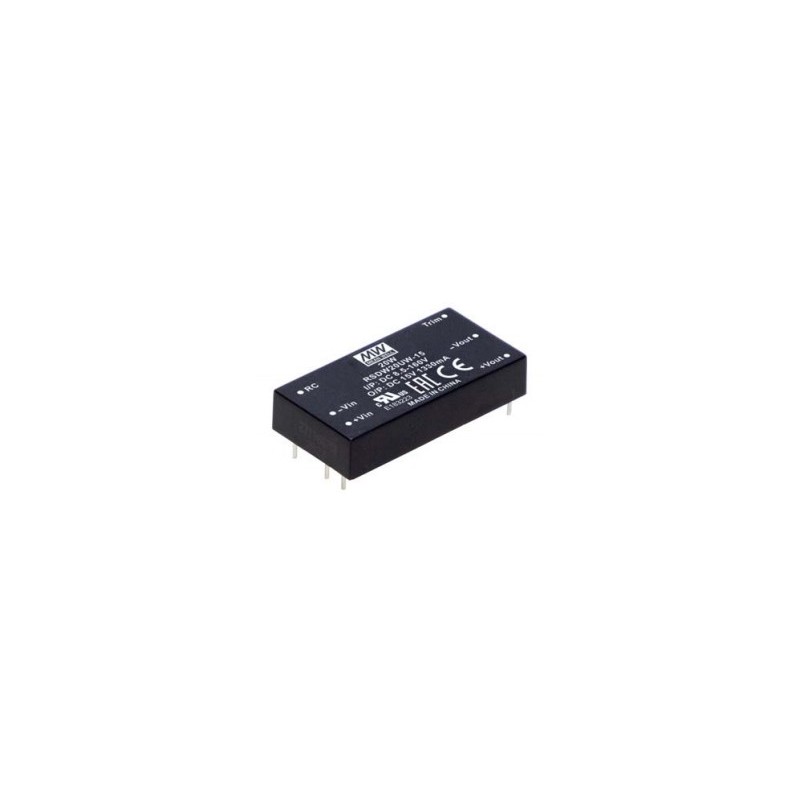

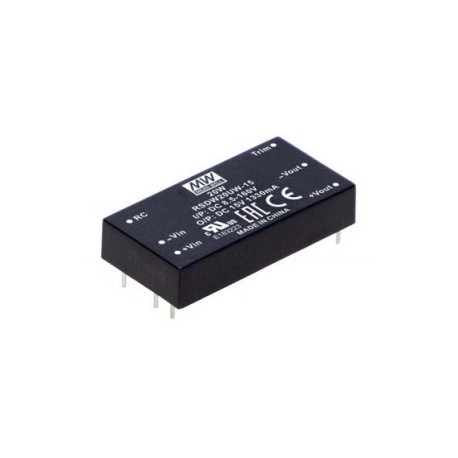

RSDW20UW-15

Mean Well DC/DC converter series RSDW20UW

Converter modules in a 2x1 inch DIL housing with 20W and an input voltage ratio of 18:1. These devices do not require a minimum load, are suitable for direct PCB mounting and protected against short circuit, overload as well as overvoltage. They have a built-in remote ON/OFF control and comply with EN50155 (railway), IEC60571 as well as UL62368-1. We offer the following types of this Mean Well series: RSDW20UW-05, RSDW20UW-12 and RSDW20UW-15.

  • single output
  • output: 20W
  • output voltage tolerance: ±1%
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • dimensions: 50,8x25,4x10,2mm
  • weight: 28,5g
RSDW20UW-15, Mean Well DC/DC converters, 20W, EN 50155 railway certificate, 2"x1", RSDW20UW series

RSDW20UW-15

235237 RSDW20UW-15 RSDW20UW-15 4711287474038 Mean Well DC/DC converter series RSDW20UW. Converter modules in a 2x1 inch DIL housing with 20W and an input voltage ratio of 18:1. These devices do not require a minimum load, are suitable for direct PCB mounting and protected against short circuit, overload as well as overvoltage. They have a built-in remote ON/OFF control and comply with EN50155 (railway), IEC60571 as well as UL62368-1. We offer the following types of this Mean Well series: RSDW20UW-05, RSDW20UW-12 and RSDW20UW-15. single output output: 20W output voltage tolerance: ±1% withstand voltage: 3000V DC operating temperature: -40 to +90°C dimensions: 50,8x25,4x10,2mm weight: 28,5g

Specifications

manufacturer
Manufacturer's name RSDW20UW-15
GTIN 4711287474038
Output voltage [V] 15
Input voltage range [V] 8,5...160
Efficiency [%] 89
Output current [A] 1,33
Ripple [mVp-p] 100
Data Sheet

Unit price

49,59 €

Volume discounts

Quantity Unit price
50 + 47,89 €

Stock: 5
Further delivery:
CW 22/2025
