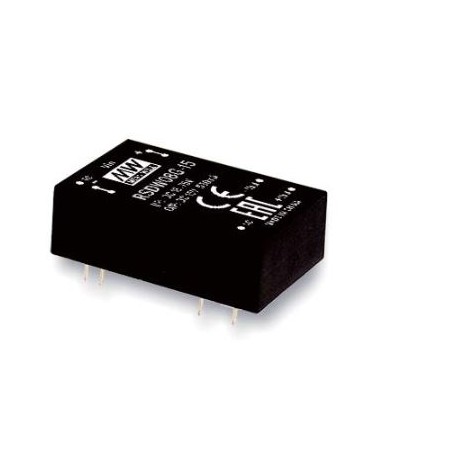

RDDW08F-05

Mean Well DC/DC converter series RSDW08 and RDDW08

DC/DC converters in a DIL24 housing with 8W, a remote ON/OFF control and an input voltage ratio of 4:1. These devices are suitable for rail industry applications and are protected against overload, input undervoltage, overvoltage as well as short circuit (continuous). They require no minimum load, are suitable for PCB mounting and comply with EN55032 class A/B, EN50155, EN61373 as well as EN50121-3-2. We offer the following types of this Mean Well series: RSDW08F-03, RSDW08F-05, RSDW08F-12, RSDW08F-15, RSDW08G-03, RSDW08G-05, RSDW08G-12, RSDW08G-15, RDDW08F-05, RDDW08F-12, RDDW08F-15, RDDW08G-05, RDDW08G-12 and RDDW08G-15.

  • single (RSDW08_) and dual output (RDDW08_)
  • output: 8W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 18,4g
Mean Well RDDW08 series

RDDW08F-05

111912 RDDW08F-05 RDDW08F-05 4711287473215 Mean Well DC/DC converter series RSDW08 and RDDW08. DC/DC converters in a DIL24 housing with 8W, a remote ON/OFF control and an input voltage ratio of 4:1. These devices are suitable for rail industry applications and are protected against overload, input undervoltage, overvoltage as well as short circuit (continuous). They require no minimum load, are suitable for PCB mounting and comply with EN55032 class A/B, EN50155, EN61373 as well as EN50121-3-2. We offer the following types of this Mean Well series: RSDW08F-03, RSDW08F-05, RSDW08F-12, RSDW08F-15, RSDW08G-03, RSDW08G-05, RSDW08G-12, RSDW08G-15, RDDW08F-05, RDDW08F-12, RDDW08F-15, RDDW08G-05, RDDW08G-12 and RDDW08G-15. single (RSDW08_) and dual output (RDDW08_) output: 8W output voltage tolerance: ±1,5% maximal ripple and noise: 50mVpp withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 18,4g

Specifications

manufacturer
Manufacturer's name RDDW08F-05
GTIN 4711287473215
Input voltage [V] 9...36
Output voltage [V] ±5
Output current range [mA] ±0...800
Efficiency [%] 82
Ripple [mVp-p] 50
Data Sheet

Unit price

15,89 €

Volume discounts

Quantity Unit price
50 + 14,79 €

Stock: 10
Further delivery:
CW 22/2025
