RSDH-300-12

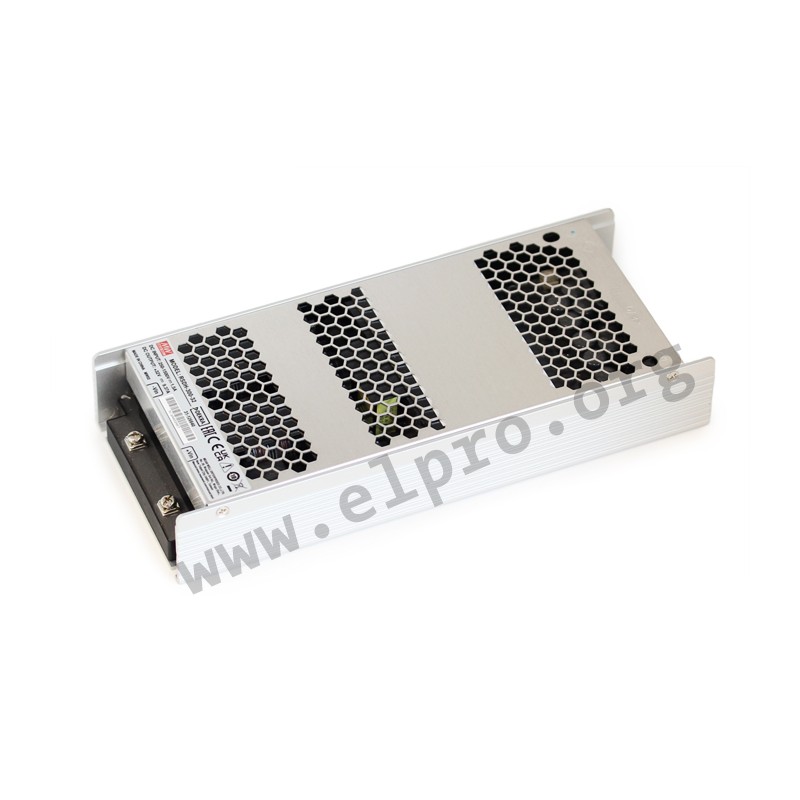

Mean Well DC/DC converter series RSDH-300

DC/DC converters in a compact housing (1U/41mm) with 300W, screw terminals and an input voltage ratio of 6:1. These devices are suitable for an operating altitude of up to 5000m and are protected against overload, overvoltage, overtemperature as well as short circuit. They have an adjustable output voltage, a fanless design and comply with EN62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: RSDH-300-12, RSDH-300-24, RSDH-300-32 and RSDH-300-48.

  • single output
  • output: 300W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2000V DC
  • withstand voltage O/P-FG: 2000V DC
  • operating temperature: -40 to +80°C
  • weight: 1100g

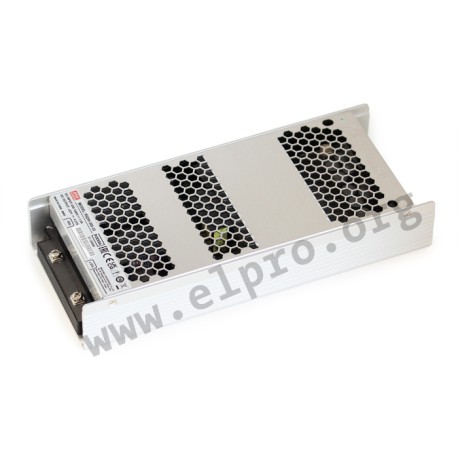

RSDH-300-12, Mean Well DC/DC converters, 300W, enclosed, RSDH-300 series

RSDH-300-12

242680 RSDH-300-12 RSDH-300-12 4711287486932 Mean Well DC/DC converter series RSDH-300. DC/DC converters in a compact housing (1U/41mm) with 300W, screw terminals and an input voltage ratio of 6:1. These devices are suitable for an operating altitude of up to 5000m and are protected against overload, overvoltage, overtemperature as well as short circuit. They have an adjustable output voltage, a fanless design and comply with EN62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: RSDH-300-12, RSDH-300-24, RSDH-300-32 and RSDH-300-48. single output output: 300W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2000V DC withstand voltage O/P-FG: 2000V DC operating temperature: -40 to +80°C weight: 1100g

Specifications

manufacturer
Manufacturer's name RSDH-300-12
GTIN 4711287486932
Output voltage [V] 12
Input voltage range [V] 250...1500
Efficiency [%] 86
Output current range [A] 0...20
Output voltage tolerance: [%] ±1,5
Ripple [mVp-p] 120
Data Sheet

Unit price

86,49 €

Volume discounts

Quantity Unit price
50 + 84,59 €

Stock: 19
Further delivery:
CW 11/2025
