RSDH-150-32

Mean Well DC/DC converter series RSDH-150

DC/DC converters in a compact housing (1U/41mm) with 150W, an input voltage ratio of 6:1 and screw terminals. These devices have an adjustable output voltage and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a fanless design, are suitable for an operating altitude of up to 5000m and comply with EN62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: RSDH-150-12, RSDH-150-24, RSDH-150-32 and RSDH-150-48.

  • single output
  • output: 150W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2000V DC
  • withstand voltage O/P-FG: 2000V DC
  • operating temperature: -40 to +80°C
  • weight: 810g

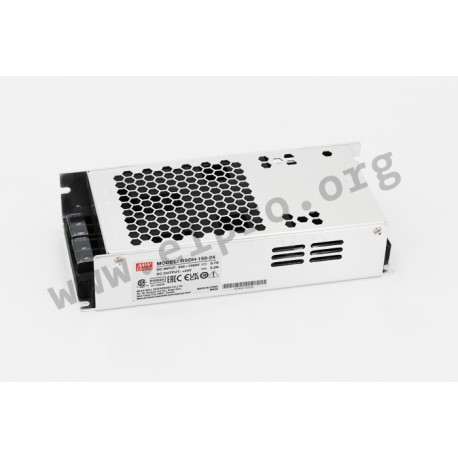

RSDH-150-32, Mean Well DC/DC converters, 150W, enclosed, RSDH-150 series

RSDH-150-32

242678 RSDH-150-32 RSDH-150-32 4711287486918 Mean Well DC/DC converter series RSDH-150. DC/DC converters in a compact housing (1U/41mm) with 150W, an input voltage ratio of 6:1 and screw terminals. These devices have an adjustable output voltage and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a fanless design, are suitable for an operating altitude of up to 5000m and comply with EN62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: RSDH-150-12, RSDH-150-24, RSDH-150-32 and RSDH-150-48. single output output: 150W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2000V DC withstand voltage O/P-FG: 2000V DC operating temperature: -40 to +80°C weight: 810g

Specifications

manufacturer
Manufacturer's name RSDH-150-32
GTIN 4711287486918
Output voltage [V] 32
Input voltage range [V] 250...1500
Efficiency [%] 87
Output current range [A] 0...4,68
Output voltage tolerance: [%] ±1
Ripple [mVp-p] 240
Data Sheet

Unit price

61,49 €

Volume discounts

Quantity Unit price
50 + 60,19 €

Stock: 11
Further delivery:
CW 11/2025
