RSD-300E-24

Mean Well DC/DC converter series RSD-300

DC/DC converter modules in an enclosed housing (1U/40mm) with 300W, an input voltage ratio of 2:1, a galvanic isolation of input/output, an LED indicator for power on, a regulated output voltage and screw terminals. These devices are suitable for rail industry applications and are protected against overload, input voltage reversal, short circuit, overtemperature as well as overvoltage. They have a built-in constant current limiting circuit and comply with EN45545-2, EN50155, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RSD-300B-5, RSD-300B-12, RSD-300B-24, RSD-300B-48, RSD-300C-5, RSD-300C-12, RSD-300C-24, RSD-300C-48, RSD-300D-5, RSD-300D-12, RSD-300D-24, RSD-300E-5, RSD-300E-12, RSD-300E-48, RSD-300F-5, RSD-300F-12, RSD-300F-24 and RSD-300F-48.

  • single output
  • output: 210 to 302,4W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -40 to +55°C
  • weight: 1190g

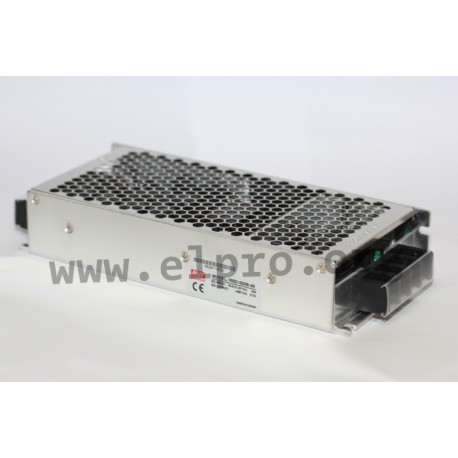

RSD-300E-24, Mean Well DC/DC converters, 300W, EN50155 railway certificate, enclosed, RSD-300 series

RSD-300E-24

246582 RSD-300E-24 RSD-300E-24 4711287464794 Mean Well DC/DC converter series RSD-300. DC/DC converter modules in an enclosed housing (1U/40mm) with 300W, an input voltage ratio of 2:1, a galvanic isolation of input/output, an LED indicator for power on, a regulated output voltage and screw terminals. These devices are suitable for rail industry applications and are protected against overload, input voltage reversal, short circuit, overtemperature as well as overvoltage. They have a built-in constant current limiting circuit and comply with EN45545-2, EN50155, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RSD-300B-5, RSD-300B-12, RSD-300B-24, RSD-300B-48, RSD-300C-5, RSD-300C-12, RSD-300C-24, RSD-300C-48, RSD-300D-5, RSD-300D-12, RSD-300D-24, RSD-300E-5, RSD-300E-12, RSD-300E-48, RSD-300F-5, RSD-300F-12, RSD-300F-24 and RSD-300F-48. single output output: 210 to 302,4W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2500V DC withstand voltage O/P-FG: 2500V DC operating temperature: -40 to +55°C weight: 1190g

Specifications

manufacturer
Manufacturer's name RSD-300E-24
GTIN 4711287464794
Input voltage [V] 25,2...46,8
Output voltage [V] 24
Efficiency [%] 91
Output current range [A] 0...12,5
Output power [W] 302,4
Ripple [mVp-p] 150
Data Sheet

Unit price

116,79 €

Stock: 0
Further delivery:
CW 11/2025
