RSD-30H-5

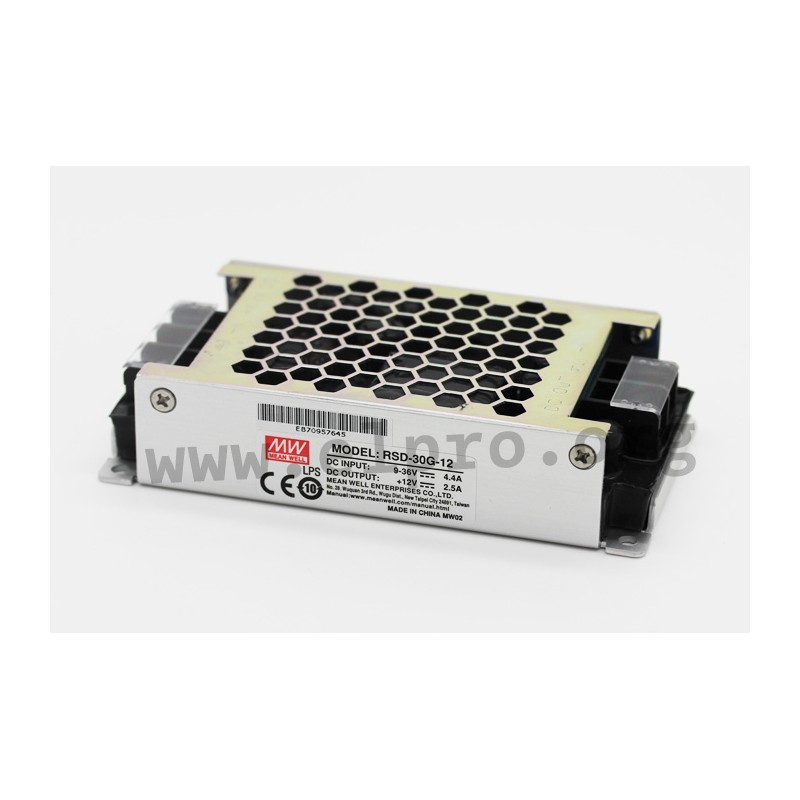

Mean Well DC/DC converter series RSD-30

Converter modules in an enclosed case with 30W, a low profile (25mm, 1U), screw terminals and an LED indicator for power on. These devices are half encapsulated, have a built-in constant current limiting circuit, a wide input voltage ratio of 4:1 and are protected against short circuit, overload, overvoltage as well as input reverse polarity. They are suitable for applications in rough and very dusty environments with high vibrations and extreme temperatures (railway), require no minimum load and comply with IEC609502-1, EN55032 class B as well as EN45545-2. We offer the following types of this Mean Well series: RSD-30G-3.3, RSD-30G-5, RSD-30G-12, RSD-30G-24, RSD-30L-3.3, RSD-30L-5, RSD-30L-12, RSD-30L-24, RSD-30H-3.3, RSD-30H-5, RSD-30H-12 and RSD-30H-24.

  • single output
  • output: 19,8 to 30W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -40 to +70°C
  • weight: 250g
RSD-30H-5, Mean Well DC/DC converters, 30W, EN50155 railway certificate, enclosed, RSD-30 series

RSD-30H-5

123999 RSD-30H-5 RSD-30H-5 4711287464183 Mean Well DC/DC converter series RSD-30. Converter modules in an enclosed case with 30W, a low profile (25mm, 1U), screw terminals and an LED indicator for power on. These devices are half encapsulated, have a built-in constant current limiting circuit, a wide input voltage ratio of 4:1 and are protected against short circuit, overload, overvoltage as well as input reverse polarity. They are suitable for applications in rough and very dusty environments with high vibrations and extreme temperatures (railway), require no minimum load and comply with IEC609502-1, EN55032 class B as well as EN45545-2. We offer the following types of this Mean Well series: RSD-30G-3.3, RSD-30G-5, RSD-30G-12, RSD-30G-24, RSD-30L-3.3, RSD-30L-5, RSD-30L-12, RSD-30L-24, RSD-30H-3.3, RSD-30H-5, RSD-30H-12 and RSD-30H-24. single output output: 19,8 to 30W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2500V DC withstand voltage O/P-FG: 2500V DC operating temperature: -40 to +70°C weight: 250g

Specifications

manufacturer
Manufacturer's name RSD-30H-5
GTIN 4711287464183
Input voltage [V] 40...160
Output voltage [V] 5
Efficiency [%] 89
Output current range [A] 0...6
Output voltage tolerance: [%] 70
Output power [W] 30
Ripple [mVp-p] 70
Data Sheet

Unit price

30,19 €

Volume discounts

Quantity Unit price
50 + 28,39 €

Stock: 66
Further delivery:
CW 11/2025
