RSD-200C-24

Mean Well DC/DC converter series RSD-200

DC/DC converters in an enclosed housing (1U/40mm) with 200W, an LED indicator for power on, a regulated output voltage, a galvanic isolation of input/output, an input voltage ratio of 2:1 and screw terminals. These devices are suitable for rail industry applications and are protected against overload, input voltage reversal, overtemperature, short circuit as well as overvoltage. They have a built-in constant current limiting circuit and comply with EN50155, EN45545-2, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RSD-200B-12, RSD-200B-24, RSD-200B-48, RSD-200C-12, RSD-200C-24, RSD-200C-48, RSD-200D-12, RSD-200D-24 and RSD-200D-48.

  • single output
  • output: 200,4 to 201,6W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -40 to +55°C
  • weight: 940g

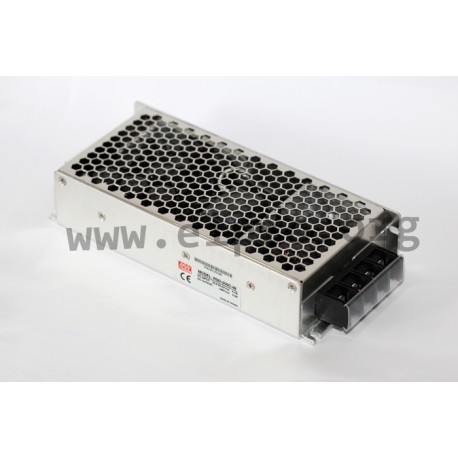

Meanwell RSD-200 series

RSD-200C-24

36568 RSD-200C-24 RSD-200C-24 4711287464602 Mean Well DC/DC converter series RSD-200. DC/DC converters in an enclosed housing (1U/40mm) with 200W, an LED indicator for power on, a regulated output voltage, a galvanic isolation of input/output, an input voltage ratio of 2:1 and screw terminals. These devices are suitable for rail industry applications and are protected against overload, input voltage reversal, overtemperature, short circuit as well as overvoltage. They have a built-in constant current limiting circuit and comply with EN50155, EN45545-2, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RSD-200B-12, RSD-200B-24, RSD-200B-48, RSD-200C-12, RSD-200C-24, RSD-200C-48, RSD-200D-12, RSD-200D-24 and RSD-200D-48. single output output: 200,4 to 201,6W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2500V DC withstand voltage O/P-FG: 2500V DC operating temperature: -40 to +55°C weight: 940g

Specifications

manufacturer
Manufacturer's name RSD-200C-24
GTIN 4711287464602
Input voltage [V] 33,6...62,4
Output voltage [V] 24
Efficiency [%] 91
Output current range [A] 0...8,4
Ripple [mVp-p] 150
Data Sheet

Unit price

97,59 €

Volume discounts

Quantity Unit price
50 + 95,59 €

Stock: 36
Further delivery:
CW 11/2025
