RSD-100C-24

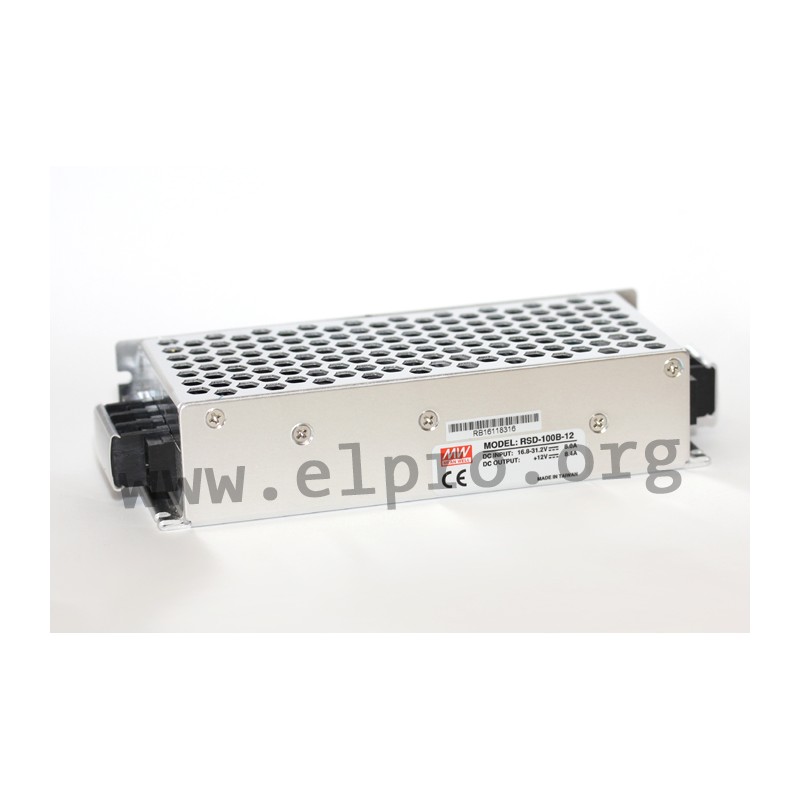

Mean Well DC/DC converter series RSD-100

DC/DC converters in an enclosed housing (1U/36mm) with 100W, an LED indicator for power on, an input voltage ratio of 2:1 and screw terminals. These devices are suitable for rail industry applications and are protected against overload (auto recovery), short circuit, input voltage reversal as well as overvoltage. They have a regulated output voltage, are using high-quality long life caps (105°C) and comply with UL62368-1, IEC62368-1, EN50155, EN45545-2 as well as EN55032 class A. We offer the following types of this Mean Well series: RSD-100B-5, RSD-100B-12, RSD-100B-24, RSD-100C-5, RSD-100C-12, RSD-100C-24, RSD-100D-5, RSD-100D-12 and RSD-100D-24.

  • single output
  • output: 100 to 100,8W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -40 to +55°C
  • weight: 600g

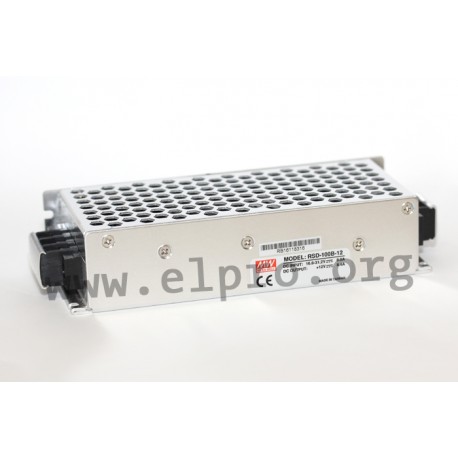

Meanwell RSD-100 series

RSD-100C-24

36166 RSD-100C-24 RSD-100C-24 4711287464435 Mean Well DC/DC converter series RSD-100. DC/DC converters in an enclosed housing (1U/36mm) with 100W, an LED indicator for power on, an input voltage ratio of 2:1 and screw terminals. These devices are suitable for rail industry applications and are protected against overload (auto recovery), short circuit, input voltage reversal as well as overvoltage. They have a regulated output voltage, are using high-quality long life caps (105°C) and comply with UL62368-1, IEC62368-1, EN50155, EN45545-2 as well as EN55032 class A. We offer the following types of this Mean Well series: RSD-100B-5, RSD-100B-12, RSD-100B-24, RSD-100C-5, RSD-100C-12, RSD-100C-24, RSD-100D-5, RSD-100D-12 and RSD-100D-24. single output output: 100 to 100,8W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2500V DC withstand voltage O/P-FG: 2500V DC operating temperature: -40 to +55°C weight: 600g

Specifications

manufacturer
Manufacturer's name RSD-100C-24
GTIN 4711287464435
Input voltage [V] 33,6...62,4
Output voltage [V] 24
Efficiency [%] 91
Output current range [A] 0...4,2
Ripple [mVp-p] 150
Data Sheet

Unit price

64,09 €

Volume discounts

Quantity Unit price
50 + 62,79 €

Stock: 196
Further delivery:
CW 11/2025
