PSAIG 15V 3,4A G3

Mean Well power supply series RS-50

Switching power supplies in an enclosed housing with 50W, a universal input and screw terminals. These devices have long life caps (105°C) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-50-3.3, RS-50-5, RS-50-12, RS-50-15, RS-50-24 and RS-50-48.

  • single output
  • output: 33 to 52,8W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 33A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 410g

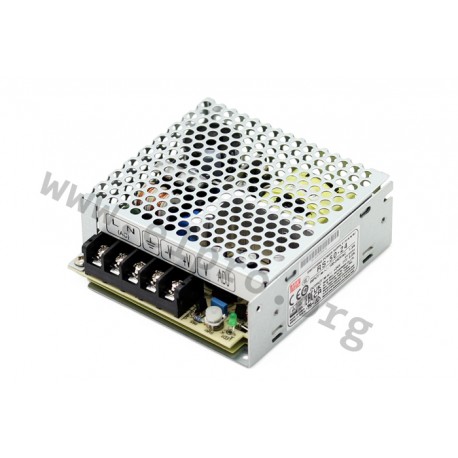

RS-50-15, Mean Well switching power supplies, 50W, RS-50 series

PSAIG 15V 3,4A G3

17949 PSAIG 15V 3,4A G3 RS-50-15 RS-50-15 Mean Well power supply series RS-50. Switching power supplies in an enclosed housing with 50W, a universal input and screw terminals. These devices have long life caps (105°C) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-50-3.3, RS-50-5, RS-50-12, RS-50-15, RS-50-24 and RS-50-48. single output output: 33 to 52,8W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 33A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 410g

Specifications

manufacturer
Manufacturer's name RS-50-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 86
Output current range [A] 0...3,4
Output voltage tolerance: [%] 1
Output power [W] 51
Ripple [mVp-p] 120
Data Sheet

Unit price

12,09 €

Volume discounts

Quantity Unit price
50 + 11,29 €

Stock: 185
Further delivery:
CW 12/2025
