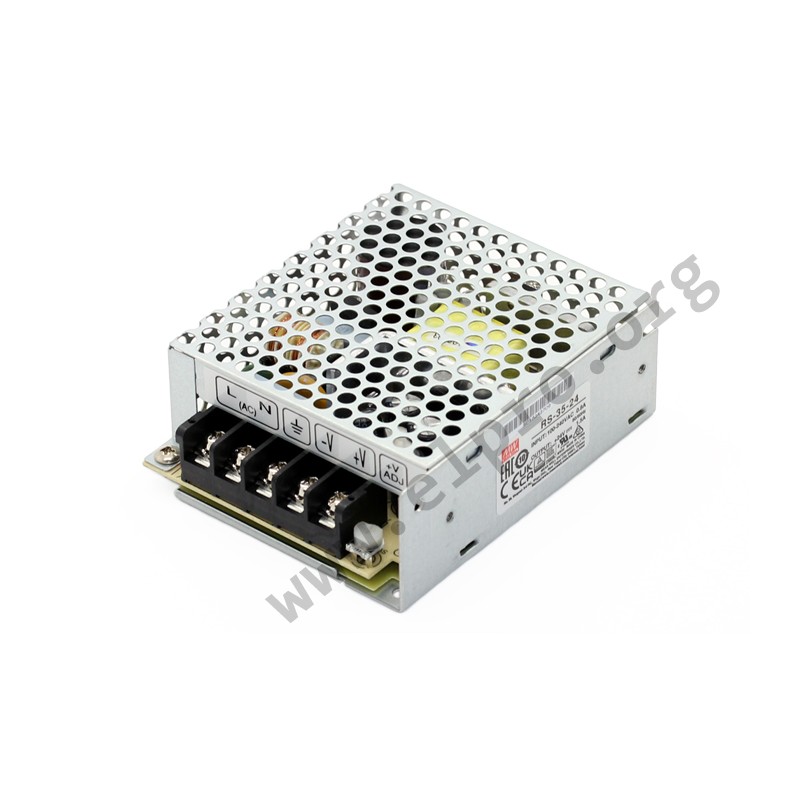

PSAIG 24V 1,5A G3

Mean Well power supply series RS-35

Switching power supplies in an enclosed housing with 35W, screw terminals and a universal input. These devices have long life caps (105°C) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high reliability, a long service life and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-35-3.3, RS-35-5, RS-35-12, RS-35-15, RS-35-24 and RS-35-48.

  • single output
  • output: 23,1 to 38,4W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 36A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 300g

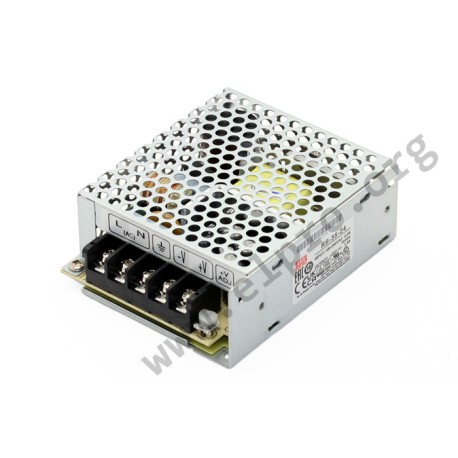

RS-35-24, Mean Well switching power supplies, 35W, RS-35 series

PSAIG 24V 1,5A G3

17959 PSAIG 24V 1,5A G3 RS-35-24 RS-35-24 Mean Well power supply series RS-35. Switching power supplies in an enclosed housing with 35W, screw terminals and a universal input. These devices have long life caps (105°C) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high reliability, a long service life and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-35-3.3, RS-35-5, RS-35-12, RS-35-15, RS-35-24 and RS-35-48. single output output: 23,1 to 38,4W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 36A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 300g

Specifications

manufacturer
Manufacturer's name RS-35-24
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...1,5
Output voltage tolerance: [%] 1
Output power [W] 36
Ripple [mVp-p] 120
Data Sheet

Unit price

9,89 €

Volume discounts

Quantity Unit price
50 + 9,29 €

Stock: 696
Next incoming goods:
CW 07/2025
540 units

Further delivery:
CW 12/2025
