PSAIG 24V 1,1A G3

Mean Well power supply series RS-25

Switching power supplies in an enclosed housing with 25W, a universal input and screw terminals. These devices have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-25-3.3, RS-25-5, RS-25-12, RS-25-15, RS-25-24 and RS-25-48.

  • single output
  • output: 19,8 to 27,36W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 30A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 180%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 200g

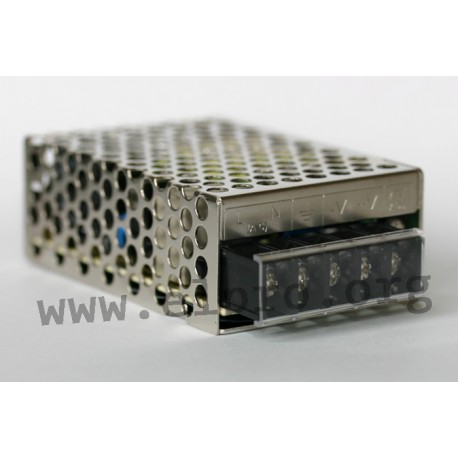

Meanwell RS-25 series

PSAIG 24V 1,1A G3

17958 PSAIG 24V 1,1A G3 RS-25-24 RS-25-24 Mean Well power supply series RS-25. Switching power supplies in an enclosed housing with 25W, a universal input and screw terminals. These devices have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-25-3.3, RS-25-5, RS-25-12, RS-25-15, RS-25-24 and RS-25-48. single output output: 19,8 to 27,36W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 30A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 110 to 180% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 200g

Specifications

manufacturer
Manufacturer's name RS-25-24
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 86
Output current range [A] 0...1,1
Output voltage tolerance: [%] 1
Output power [W] 26,4
Ripple [mVp-p] 120
Data Sheet

Unit price

7,79 €

Volume discounts

Quantity Unit price
50 + 7,39 €

Stock: 3030
Next incoming goods:
CW 49/2024
2030 units

Further delivery:
CW 12/2025
