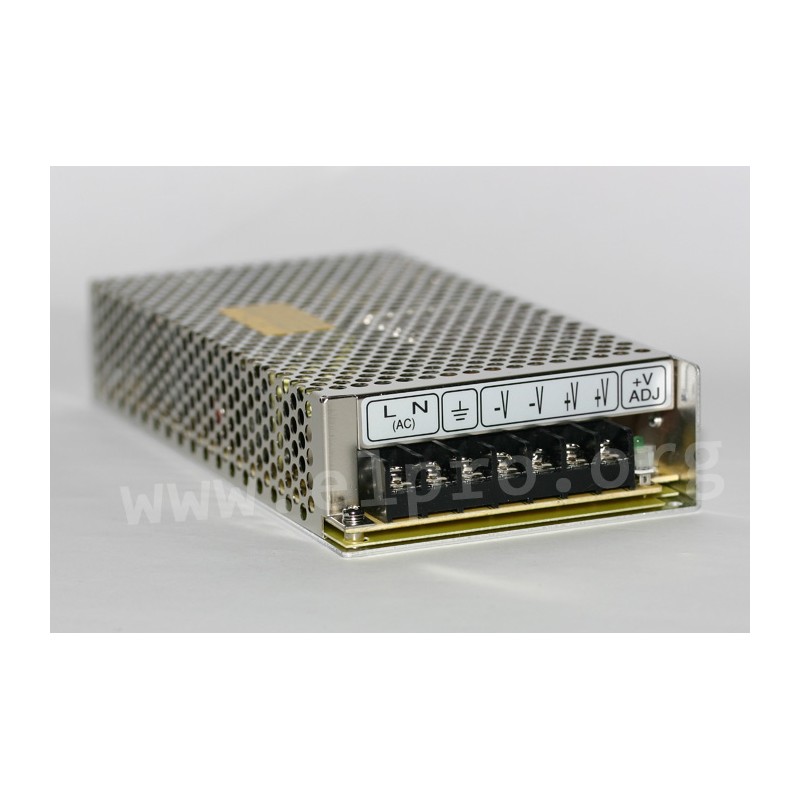

PSAIG 12V 12,5A G3

Mean Well power supply series RS-150

Switching power supplies in an enclosed housing with 150W, screw terminals and a universal input. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a switch for selecting the AC input range 115V/230V and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-150-3.3, RS-150-5, RS-150-12, RS-150-15, RS-150-24 and RS-150-48.

  • single output
  • output: 99 to 158,4W
  • input voltage: 88 to 132V AC / 176 to 264V AC (47 to 63Hz), 248 to 373V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 700g

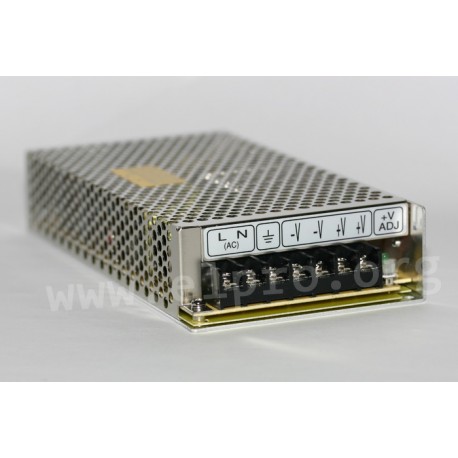

dimensions and terminal pin assignment

PSAIG 12V 12,5A G3

17923 PSAIG 12V 12,5A G3 RS-150-12 RS-150-12 Mean Well power supply series RS-150. Switching power supplies in an enclosed housing with 150W, screw terminals and a universal input. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a switch for selecting the AC input range 115V/230V and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-150-3.3, RS-150-5, RS-150-12, RS-150-15, RS-150-24 and RS-150-48. single output output: 99 to 158,4W input voltage: 88 to 132V AC / 176 to 264V AC (47 to 63Hz), 248 to 373V DC maximal input inrush current: 40A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 700g

Specifications

manufacturer
Manufacturer's name RS-150-12
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 83
Output current range [A] 0...12,5
Output voltage tolerance: [%] 1
Output power [W] 150
Ripple [mVp-p] 120
Data Sheet

Unit price

19,59 €

Volume discounts

Quantity Unit price
50 + 18,39 €

Stock: 230
Next incoming goods:
CW 49/2024
498 units

Further delivery:
CW 12/2025
