PSAIG 15V 1A G3

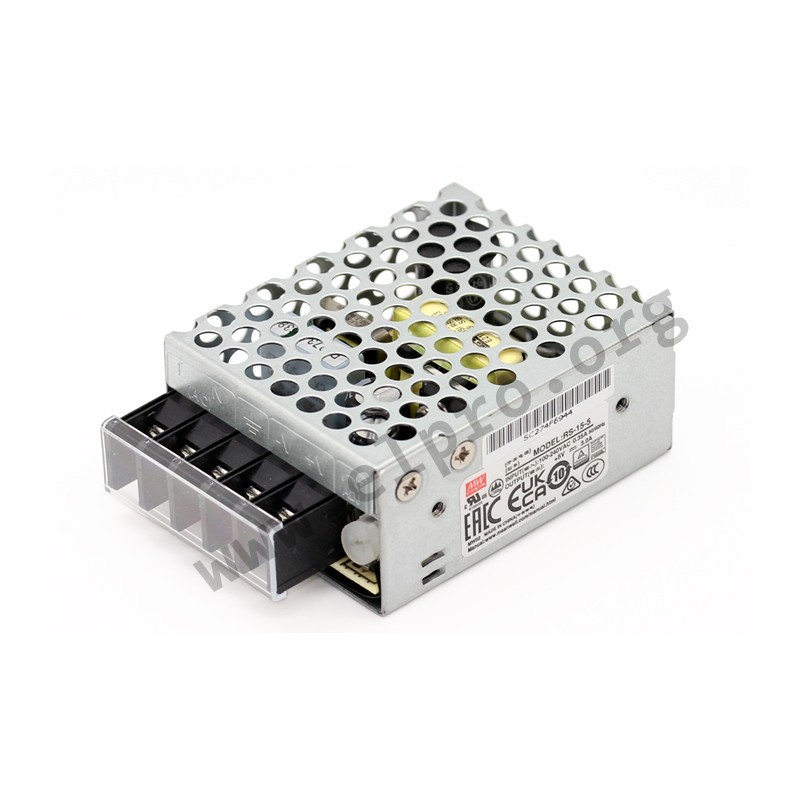

Mean Well power supply series RS-15

Switching power supplies in an enclosed housing with 15W, a universal input and screw terminals. These devices are using long life caps (105°C) and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a high efficiency as well as a high reliability and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-15-3.3, RS-15-5, RS-15-12, RS-15-15, RS-15-24 and RS-15-48.

  • single output
  • output: 9,9 to 15,6W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 65A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5
  • overload protection: >105%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 130g

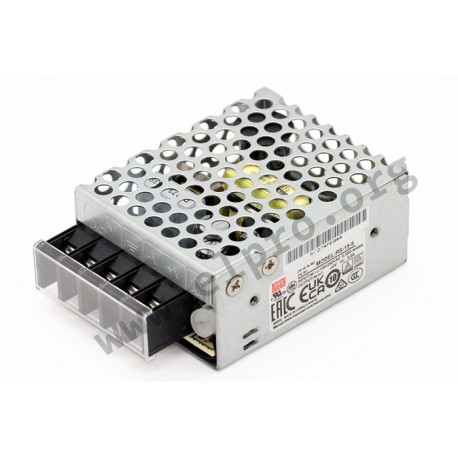

RS-15-15, Mean Well switching power supplies, 15W, RS-15 series

PSAIG 15V 1A G3

29346 PSAIG 15V 1A G3 RS-15-15 RS-15-15 Mean Well power supply series RS-15. Switching power supplies in an enclosed housing with 15W, a universal input and screw terminals. These devices are using long life caps (105°C) and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a high efficiency as well as a high reliability and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-15-3.3, RS-15-5, RS-15-12, RS-15-15, RS-15-24 and RS-15-48. single output output: 9,9 to 15,6W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 65A leakage current: &lt;2mA output voltage adjustment: +10/-5 overload protection: &gt;105% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 130g

Specifications

manufacturer
Manufacturer's name RS-15-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 81
Output current range [A] 0...1
Output voltage tolerance: [%] 1
Output power [W] 15
Ripple [mVp-p] 120
Data Sheet

Unit price

6,99 €

Volume discounts

Quantity Unit price
50 + 6,29 €

Stock: 19
Next incoming goods:
CW 49/2024
540 units

Further delivery:
CW 12/2025
