PSAIG 3,3V 20A G3

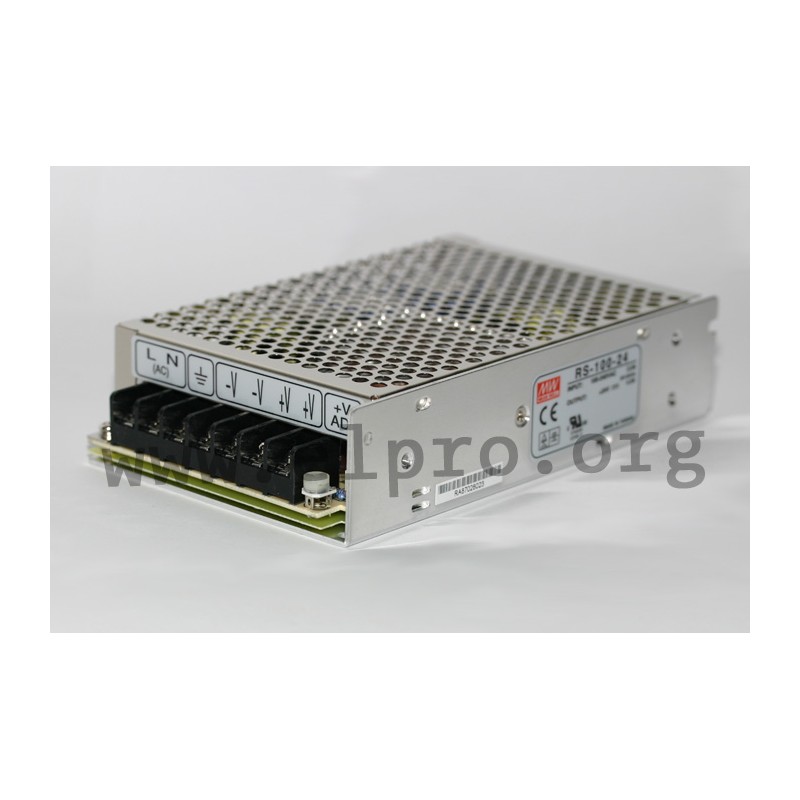

Mean Well power supply series RS-100

Switching power supplies in an enclosed housing with 100W, a universal input and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-100-3.3, RS-100-5, RS-100-12, RS-100-15, RS-100-24 and RS-100-48.

  • single output
  • output: 66 to 110,4W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 600g
Meanwell RS-100 series

PSAIG 3,3V 20A G3

26672 PSAIG 3,3V 20A G3 RS-100-3.3 RS-100-3.3 Mean Well power supply series RS-100. Switching power supplies in an enclosed housing with 100W, a universal input and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-100-3.3, RS-100-5, RS-100-12, RS-100-15, RS-100-24 and RS-100-48. single output output: 66 to 110,4W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 40A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 600g

Specifications

manufacturer
Manufacturer's name RS-100-3.3
Phase 2 phase
Efficiency [%] 74
Output current range [A] 0...20
Output voltage tolerance: [%] 3
Output power [W] 66
Ripple [mVp-p] 80
Data Sheet

Unit price

21,59 €

Volume discounts

Quantity Unit price
50 + 20,39 €

Stock: 50
Further delivery:
CW 12/2025
