RQB40W12-110S24

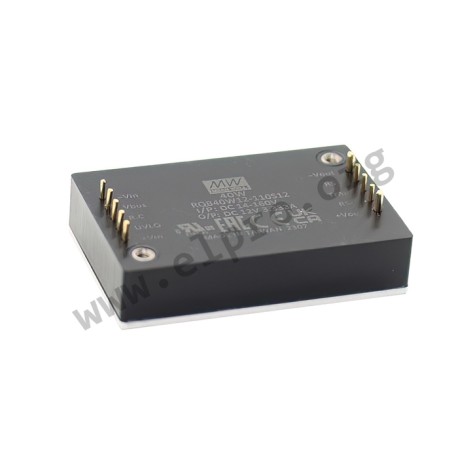

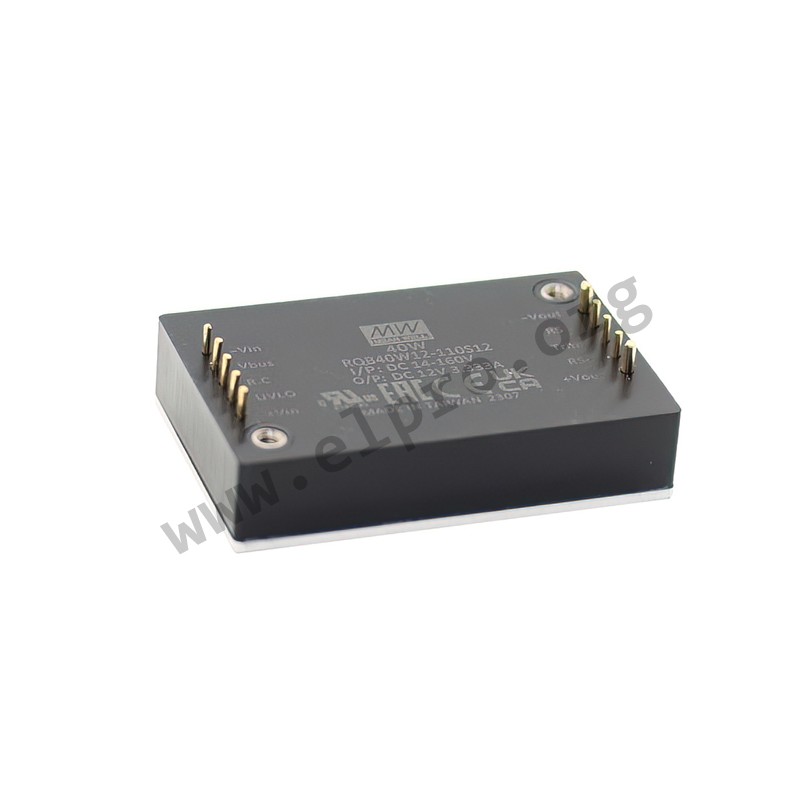

Mean Well DC/DC converter series RQB40W12

DC/DC converter modules in a Quarter Brick housing (2,28"x1,45"x0,5") with 40W, an input voltage ratio of 12:1 and a remote ON/OFF control. These devices do not require a minimum load, are suitable for PCB mounting and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a trimming output (±10%) and comply with EN55032 class A / class B as well as EN50155 (railway). We offer the following types of this Mean Well series: RQB40W12-110S05, RQB40W12-110S12, RQB40W12-110S24, RQB40W12-110S48 and RQB40W12-110S54.

  • single output
  • output: 40W
  • overload protection: 110 to 180%
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • weight: 68g
RQB40W12-110S24, Mean Well DC/DC converters, 40W, EN 50155 railway certificate, Quarter Brick housing, RQB40W12 series

RQB40W12-110S24

242669 RQB40W12-110S24 RQB40W12-110S24 4711287487090 Mean Well DC/DC converter series RQB40W12. DC/DC converter modules in a Quarter Brick housing (2,28"x1,45"x0,5") with 40W, an input voltage ratio of 12:1 and a remote ON/OFF control. These devices do not require a minimum load, are suitable for PCB mounting and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a trimming output (±10%) and comply with EN55032 class A / class B as well as EN50155 (railway). We offer the following types of this Mean Well series: RQB40W12-110S05, RQB40W12-110S12, RQB40W12-110S24, RQB40W12-110S48 and RQB40W12-110S54. single output output: 40W overload protection: 110 to 180% withstand voltage: 3000V DC operating temperature: -40 to +90°C weight: 68g

Specifications

manufacturer
Manufacturer's name RQB40W12-110S24
GTIN 4711287487090
Output voltage [V] 24
Input voltage range [V] 14...160
Efficiency [%] 88
Output current range [A] 0...1,667
Ripple [mVp-p] 150
Data Sheet

Unit price

64,49 €

Volume discounts

Quantity Unit price
50 + 62,29 €

Stock: 10
Further delivery:
CW 12/2025
