RQB150W12-110S48

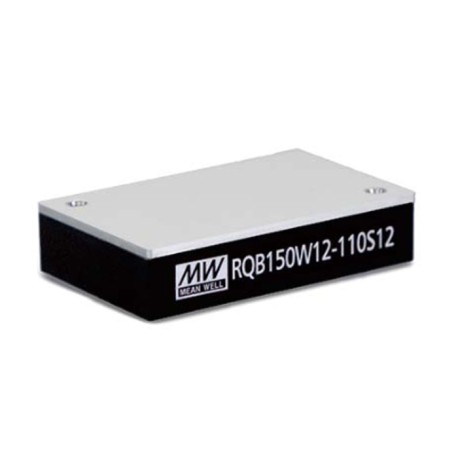

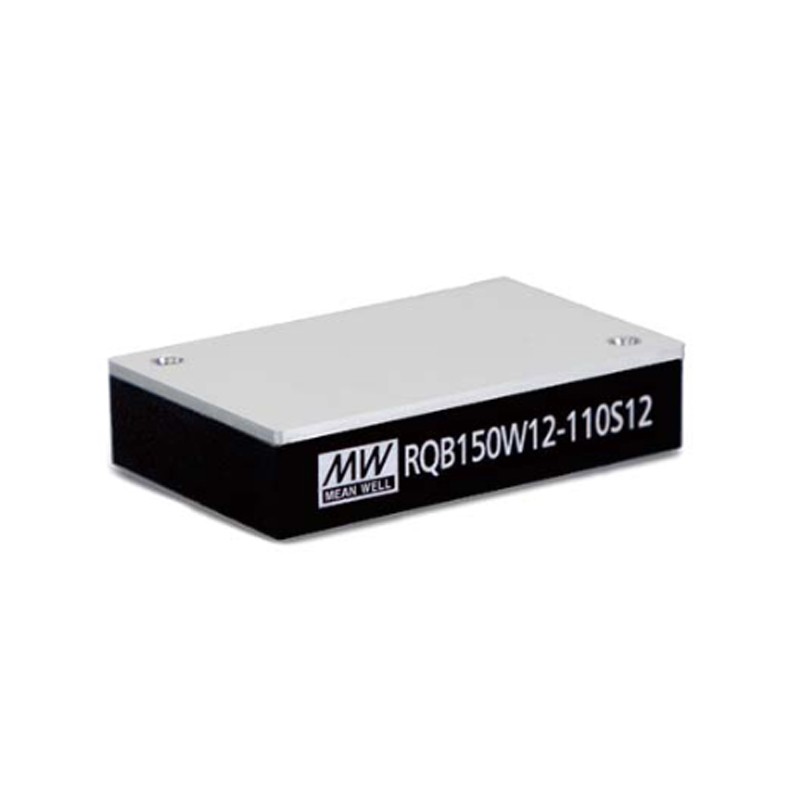

Mean Well DC/DC converter series RQB150W12

DC/DC converter modules in a quarter brick housing (2,28"x1,45"x0,5) with 150W, a remote ON/OFF control and an input voltage ratio of 12:1. These devices have a trimming output (±10%), are protected against overload, short circuit, overvoltage as well as overtemperature. They are suitable for PCB mounting and comply with EN55032 class A / B. We offer the following types of this Mean Well series: RQB150W12-110S12, RQB150W12-110S24, RQB150W12-110S48, and RQB150W12-110S54.

  • single output
  • output: 150W
  • overload protection: 120 to 200%
  • withstand voltage: 3000V AC
  • operating temperature: -40 to +90°C
  • weight: 75g
RQB150W12-110S48, Mean Well DC/DC converters, 150W, 12:1 input voltage ratio, quarter bick housing, RQB150W12 series

RQB150W12-110S48

246713 RQB150W12-110S48 RQB150W12-110S48 Mean Well DC/DC converter series RQB150W12. DC/DC converter modules in a quarter brick housing (2,28"x1,45"x0,5) with 150W, a remote ON/OFF control and an input voltage ratio of 12:1. These devices have a trimming output (±10%), are protected against overload, short circuit, overvoltage as well as overtemperature. They are suitable for PCB mounting and comply with EN55032 class A / B. We offer the following types of this Mean Well series: RQB150W12-110S12, RQB150W12-110S24, RQB150W12-110S48, and RQB150W12-110S54. single output output: 150W overload protection: 120 to 200% withstand voltage: 3000V AC operating temperature: -40 to +90°C weight: 75g

Specifications

manufacturer
Manufacturer's name RQB150W12-110S48
Output voltage [V] 48
Input voltage range [V] 14...160
Efficiency [%] 87,5
Output current [A] 3,125
Ripple [mVp-p] 480
Data Sheet

Unit price

122,59 €

Stock: 11
Further delivery:
CW 02/2025
