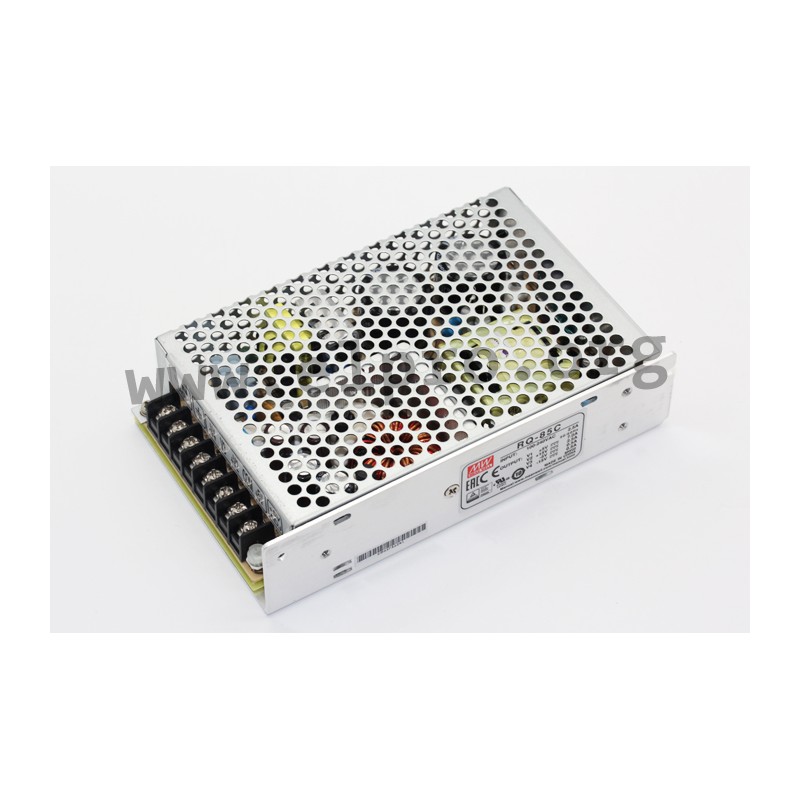

RQ-85C

Mean Well power supply series RQ-85

Switching power supplies in an enclosed case with screw terminals, 85W, a universal input and a quad output. These devices are protected against overvoltage, overload (auto recovery) as well as short circuit. They are using 105°C long life electrolytic capacitors and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RQ-85B, RQ-85C and RQ-85D.

  • quad output
  • output: 80,7 to 84W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 50A
  • maximal leakage current: 2mA
  • output voltage adjustment: 4,75 to 5,5V
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 600g

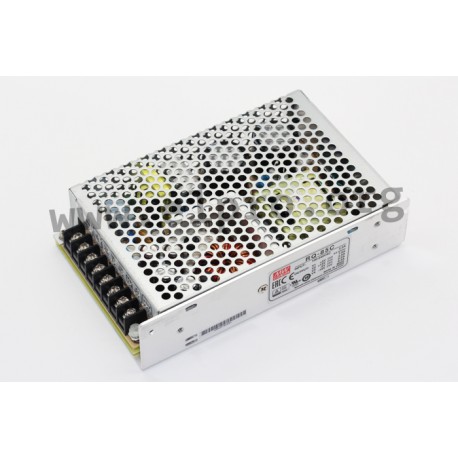

RQ-85C, Mean Well switching power supplies, 85W, enclosed, quad output, RQ-85 series

RQ-85C

123933 RQ-85C RQ-85C 4711287434445 Mean Well power supply series RQ-85. Switching power supplies in an enclosed case with screw terminals, 85W, a universal input and a quad output. These devices are protected against overvoltage, overload (auto recovery) as well as short circuit. They are using 105°C long life electrolytic capacitors and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RQ-85B, RQ-85C and RQ-85D. quad output output: 80,7 to 84W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 50A maximal leakage current: 2mA output voltage adjustment: 4,75 to 5,5V overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 600g

Specifications

manufacturer
Manufacturer's name RQ-85C
GTIN 4711287434445
Output voltage [V] 5 / 15 / -5 / -15
Efficiency [%] 77
Output current range [A] 0...10 /...
Output voltage tolerance: [%] 2 / +3, -7 / 8 / 5
Output power [W] 82,5
Ripple [mVp-p] 80 / 120 / 100 / 80
Data Sheet

Unit price

29,69 €

Volume discounts

Quantity Unit price
50 + 27,99 €

Stock: 6
Next incoming goods:
CW 05/2025
24 units

Further delivery:
CW 12/2025
