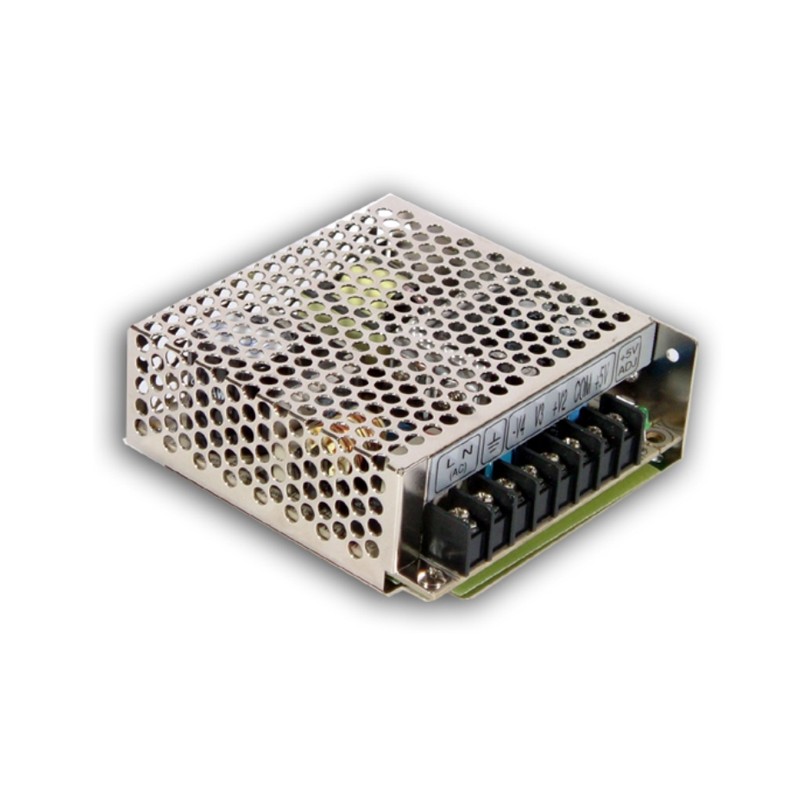

RQ-50B

Mean Well power supply series RQ-50

Switching power supplies in an enclosed housing with 50W, four output channels, screw terminals and a universal input. These devices have long life capacitors (105°C) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RQ-50B, RQ-50C and RQ-50D.

  • quad output
  • output: 45,5 to 53,4W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 48A
  • leakage current: <2mA
  • output voltage adjustment: 4,75 to 5,5V
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 410g

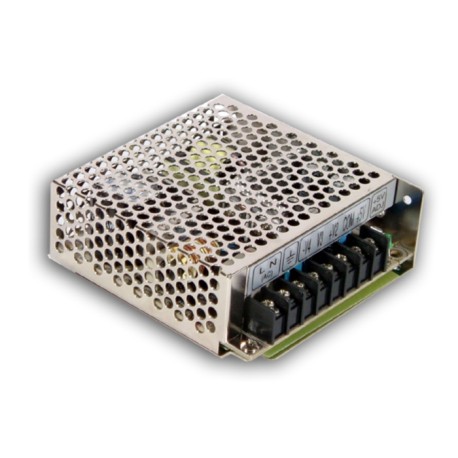

RQ-50B, Mean Well switching power supplies, 50W, quad output, RQ-50 series

RQ-50B

244432 RQ-50B RQ-50B 4711287434377 Mean Well power supply series RQ-50. Switching power supplies in an enclosed housing with 50W, four output channels, screw terminals and a universal input. These devices have long life capacitors (105°C) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RQ-50B, RQ-50C and RQ-50D. quad output output: 45,5 to 53,4W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 48A leakage current: &lt;2mA output voltage adjustment: 4,75 to 5,5V overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 410g

Specifications

manufacturer
Manufacturer's name RQ-50B
GTIN 4711287434377
Output voltage [V] 5/12/-5/-12
Efficiency [%] 74
Output current [A] 6/1,5/1/1
Output voltage tolerance: [%] 2/6/3/3
Output power [W] 45,5
Ripple [mVp-p] 80/120/100/150
Data Sheet

Unit price

19,39 €

Stock: 0
Further delivery:
CW 16/2025
