RQ-125C

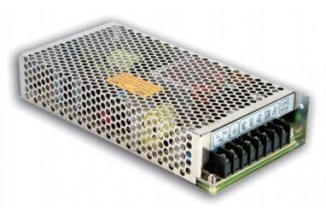

Mean Well power supply series RQ-125

Switching power supplies in an enclosed housing with 125W, screw terminals and a universal input. These devices are using long life electrolytic capacitors (105°C) and are protected against short circuit, overvoltage as well as overload (auto recovery). They have a quad output and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RQ-125B, RQ-125C and RQ-125D.

  • quad output
  • output: 120 to 124W
  • input voltage: 88 to 132V AC (47 to 63Hz), 176 to 264V DC
  • maximal input inrush current: 50A
  • maximal leakage current: 2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 700g

RQ-125C

RQ-125C

244441 RQ-125C RQ-125C 4711287434476 Mean Well power supply series RQ-125. Switching power supplies in an enclosed housing with 125W, screw terminals and a universal input. These devices are using long life electrolytic capacitors (105°C) and are protected against short circuit, overvoltage as well as overload (auto recovery). They have a quad output and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RQ-125B, RQ-125C and RQ-125D. quad output output: 120 to 124W input voltage: 88 to 132V AC (47 to 63Hz), 176 to 264V DC maximal input inrush current: 50A maximal leakage current: 2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 700g

Specifications

manufacturer
Manufacturer's name RQ-125C
GTIN 4711287434476
Output voltage [V] 5/12/-5/-15
Efficiency [%] 78
Output current range [A] 0...12/0...4...
Output voltage tolerance: [%] +10,-1/+6,-10/5/2
Output power [W] 122,5
Ripple [mVp-p] 80/120/80/80
Data Sheet

Unit price

33,19 €

Stock: 0
Further delivery:
CW 12/2025
