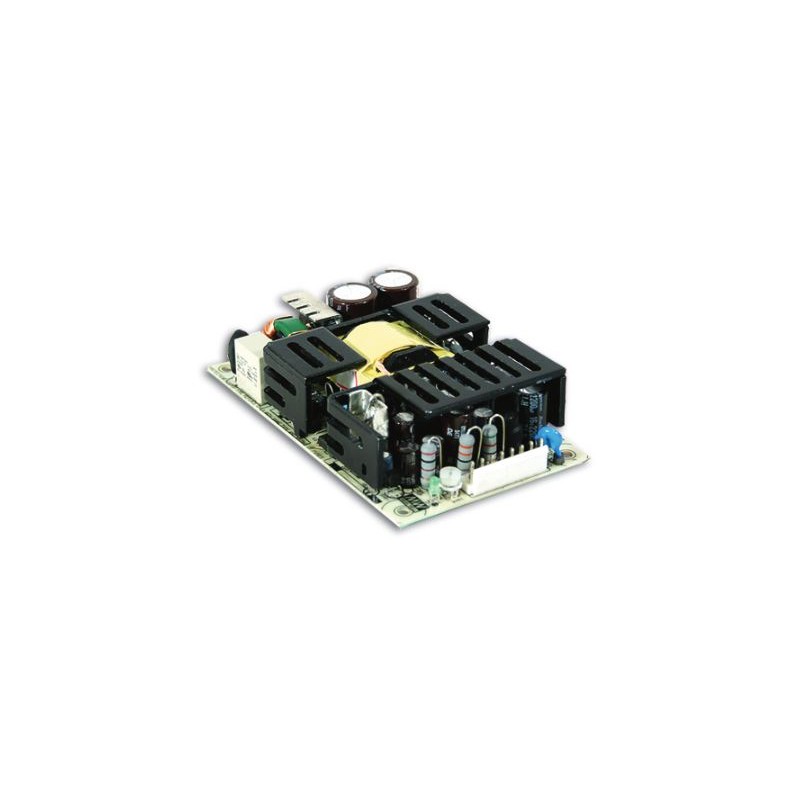

RPT-75A

Mean Well power supply series RPT-75

Switching power supplies in a 5"x3" housing (open frame) with 75W, a universal input and a pin strip connection for nylon crimp mounting. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a service life of up to 140.000 hours and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPT-75A, RPT-75B, RPT-75C, RPT-75D and RPT-7503.

  • triple output
  • output: 61,8 to 73W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • leakage current: <150µA (earth) / <100µA (touch)
  • overload protection: 140 to 180%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • weight: 250g
Mean Well RPT-75 series

RPT-75A

111859 RPT-75A RPT-75A 4711287428642 Mean Well power supply series&nbsp;RPT-75. Switching power supplies in a 5"x3" housing (open frame) with 75W, a&nbsp;universal input and a pin strip connection for nylon crimp mounting. These devices are suitable for medical technology applications (2xMOPP) and&nbsp;are protected against overload (auto recovery), overvoltage as well as short circuit. They&nbsp;have a service life of up to 140.000&nbsp;hours and comply with&nbsp;EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RPT-75A, RPT-75B, RPT-75C, RPT-75D and RPT-7503. triple output output: 61,8 to 73W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 50A leakage current: &lt;150&micro;A (earth) / &lt;100&micro;A (touch) overload protection: 140 to 180% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage&nbsp;O/P-FG: 1500V AC operating temperature: -20 to +70&deg;C weight: 250g

Specifications

manufacturer
Manufacturer's name RPT-75A
GTIN 4711287428642
Output voltage [V] 5 / 12 / -5
Efficiency [%] 76
Output current range [A] 0,6...8 /...
Output voltage tolerance: [%] 2 / 6 / 5
Output power [W] 68,5
Ripple [mVp-p] 80 / 120 / 80
Data Sheet

Unit price

24,39 €

Volume discounts

Quantity Unit price
50 + 22,99 €

Stock: 17
Further delivery:
CW 12/2025
