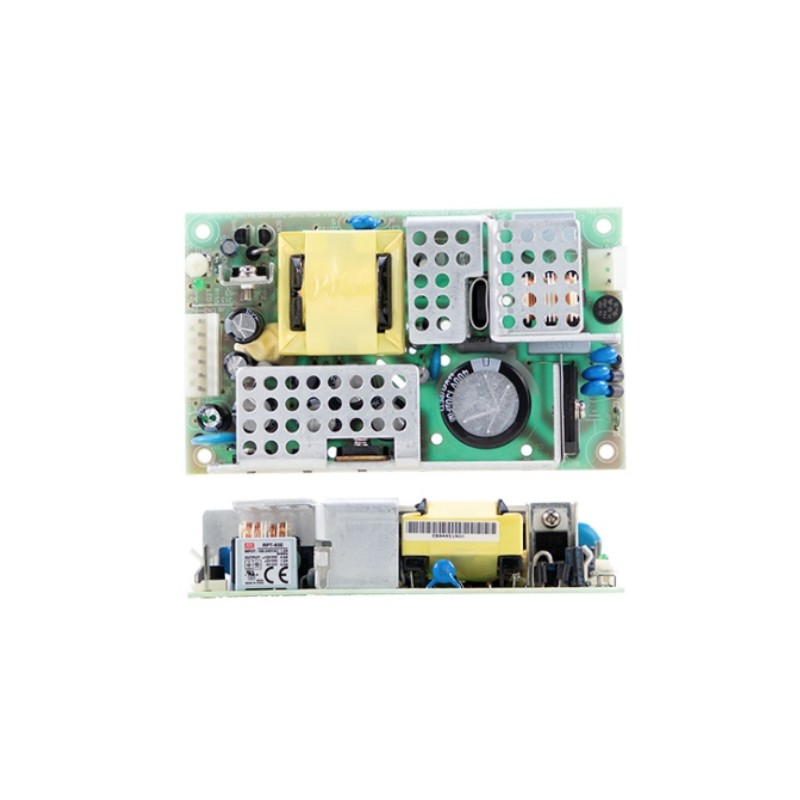

RPT-65F

Mean Well power supply series RPT-65

Open frame switching power supplies with 65W, a universal input, contact pins for nylon-crimp terminals and a low leakage current. These devices have three output channels and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a fanless design and comply with EN62368-1, EN61000-3-2 as well as EN55032 class B. We offer the following types of this Mean Well series: RPT-65E, RPT-65F and RPT-65G.

  • triple output
  • output: 62,5 to 66W
  • input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • leakage current: <1mA
  • output voltage adjustment: ±5%
  • overload protection: 90 to 125W
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C
  • weight: 240g

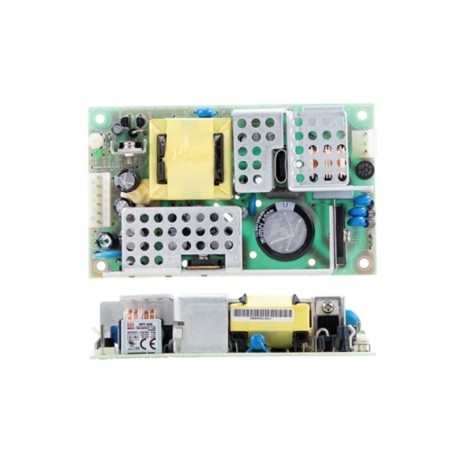

RPT-65F, Mean Well switching power supplies, 65W, triple output, open frame (PCB), RPT-65 series

RPT-65F

244987 RPT-65F RPT-65F 4711287426303 Mean Well power supply series RPT-65. Open frame switching power supplies with 65W, a universal input, contact pins for nylon-crimp terminals and a low leakage current. These devices have three output channels and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a fanless design and comply with EN62368-1, EN61000-3-2 as well as EN55032 class B. We offer the following types of this Mean Well series: RPT-65E, RPT-65F and RPT-65G. triple output output: 62,5 to 66W input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC maximal input inrush current: 50A leakage current: &lt;1mA output voltage adjustment: ±5% overload protection: 90 to 125W withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60°C weight: 240g

Specifications

manufacturer
Manufacturer's name RPT-65F
GTIN 4711287426303
Output voltage [V] 12/5/-12
Efficiency [%] 77
Output current [A] 0,18...5,8/0...
Output voltage tolerance: [%] 2/5/5
Output power [W] 66
Ripple [mVp-p] 150/100/150
Data Sheet

Unit price

21,79 €

Stock: 0
Further delivery:
CW 09/2025
