RPT-60B

Mean Well power supply series RPT-60

Switching power supplies in a compact 4"x2" housing (open frame) with 60W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications and comply with EN60601-1, UL/EN62368-1, EN61000-3-2 as well as EN61000-3-3. They have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: RPT-60A, RPT-60B, RPT-60C, RPT-60D and RPT-6003.

  • triple output
  • output: 39,9 to 50W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <150µA (earth) / <100µA (touch)
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +65°C
  • weight: 150g

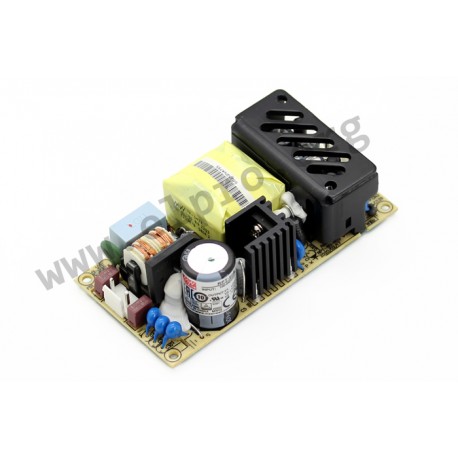

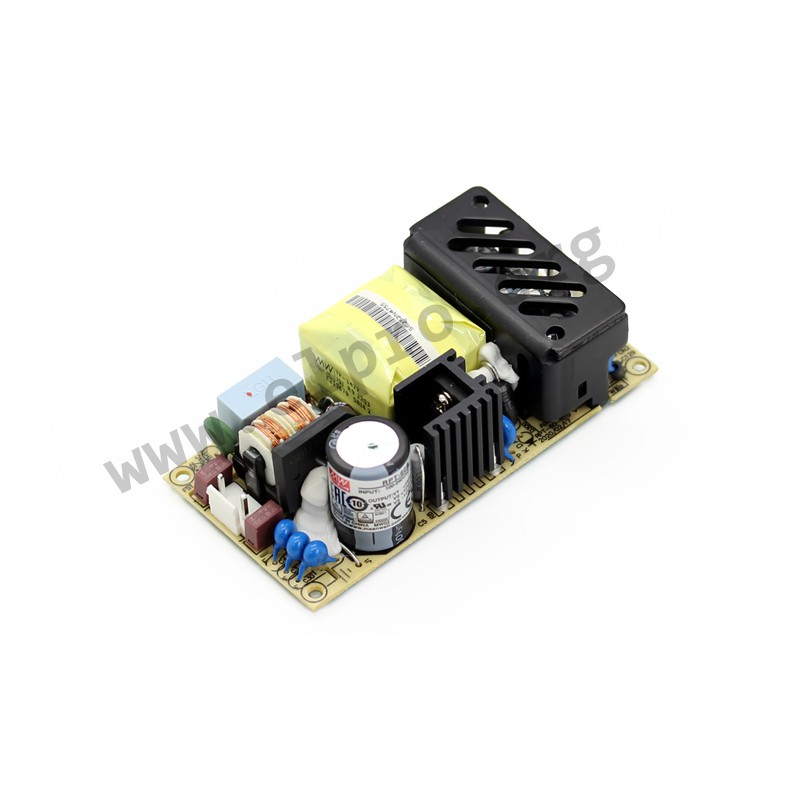

RPT-60B, Mean Well switching power supplies, 60W, triple output, for medical technology, open frame (PCB), RPT-60 Serie

RPT-60B

111857 RPT-60B RPT-60B 4711287428604 Mean Well power supply series RPT-60. Switching power supplies in a compact 4"x2" housing (open frame) with 60W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications and comply with EN60601-1, UL/EN62368-1, EN61000-3-2 as well as EN61000-3-3. They have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: RPT-60A, RPT-60B, RPT-60C, RPT-60D and RPT-6003. triple output output: 39,9 to 50W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A leakage current: &lt;150µA (earth) / &lt;100µA (touch) overload protection: 115 to 150% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +65°C weight: 150g

Specifications

manufacturer
Manufacturer's name RPT-60B
GTIN 4711287428604
Output voltage [V] 5 / 12 / -12
Efficiency [%] 78
Output current range [A] 0,5...4,4 /...
Output voltage tolerance: [%] +3, -2 / ±6 / +10, -6
Output power [W] 50
Ripple [mVp-p] 80 / 80 / 100
Data Sheet

Unit price

15,19 €

Volume discounts

Quantity Unit price
50 + 14,19 €

Stock: 75
