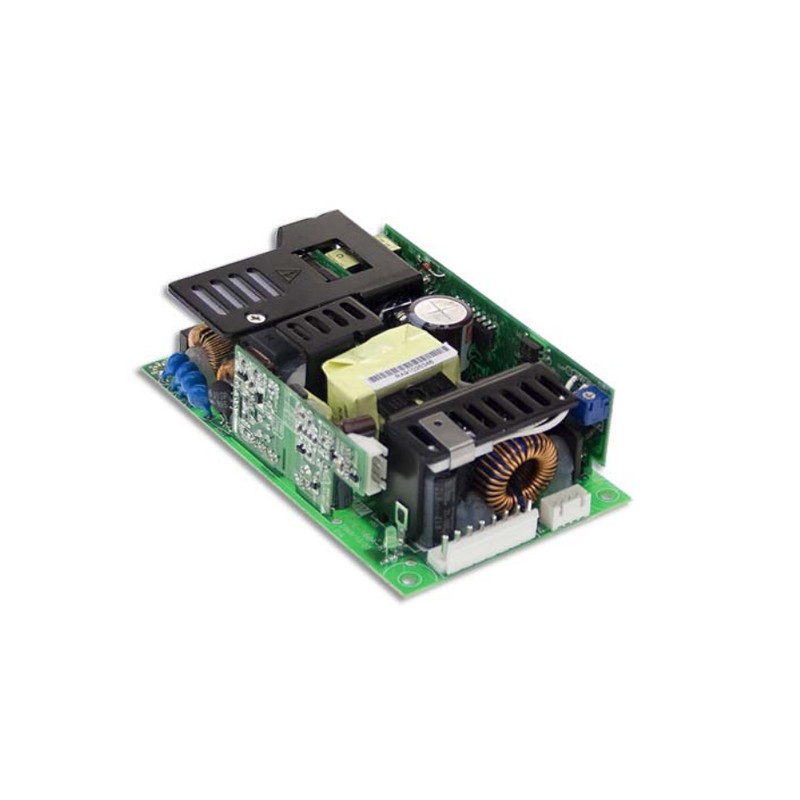

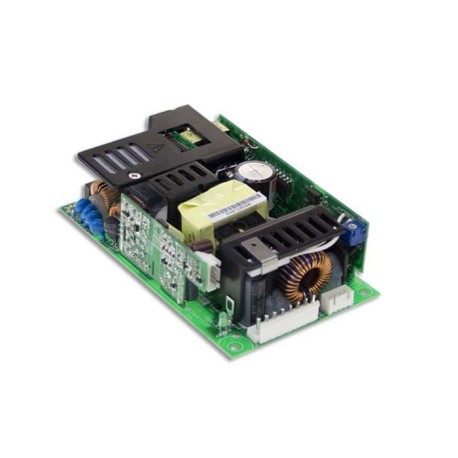

RPT-160C

Mean Well power supply series RPT-160 and RPTG-160

Open frame switching power supplies with 160W, a universal input and contact pins. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They have a compact design (5"x3"), a long service life of >85.000h and comply with EN60601-1. We offer the following types of this Mean Well series: RPT-160A, RPT-160B, RPT-160C, RPT-160D, RPTG-160A, RPTG-160B, RPTG-160C and RPTG-160D.

  • triple output
  • output: 143 to 147,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <200µA (earth) / <100µA (touch)
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • weight: 330g
RPT-160C, Mean Well switching power supplies, 160W, triple output, for medical technology, open frame (PCB), RPT160 and RPTG-160

RPT-160C

244960 RPT-160C RPT-160C 4711287428710 Mean Well power supply series RPT-160 and RPTG-160. Open frame switching power supplies with 160W, a universal input and contact pins. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They have a compact design (5"x3"), a long service life of &gt;85.000h and comply with EN60601-1. We offer the following types of this Mean Well series: RPT-160A, RPT-160B, RPT-160C, RPT-160D, RPTG-160A, RPTG-160B, RPTG-160C and RPTG-160D. triple output output: 143 to 147,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A leakage current: &lt;200µA (earth) / &lt;100µA (touch) overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +70°C weight: 330g

Specifications

manufacturer
Manufacturer's name RPT-160C
GTIN 4711287428710
Output voltage [V] 5/15/-15
Efficiency [%] 83
Output current [A] 0,6...14/0,1...
Output voltage tolerance: [%] 2/4/8
Output power [W] 143
Ripple [mVp-p] 100/150/150
Data Sheet

Unit price

60,69 €

Stock: 0
Further delivery:
CW 12/2025
