RPS-75-5

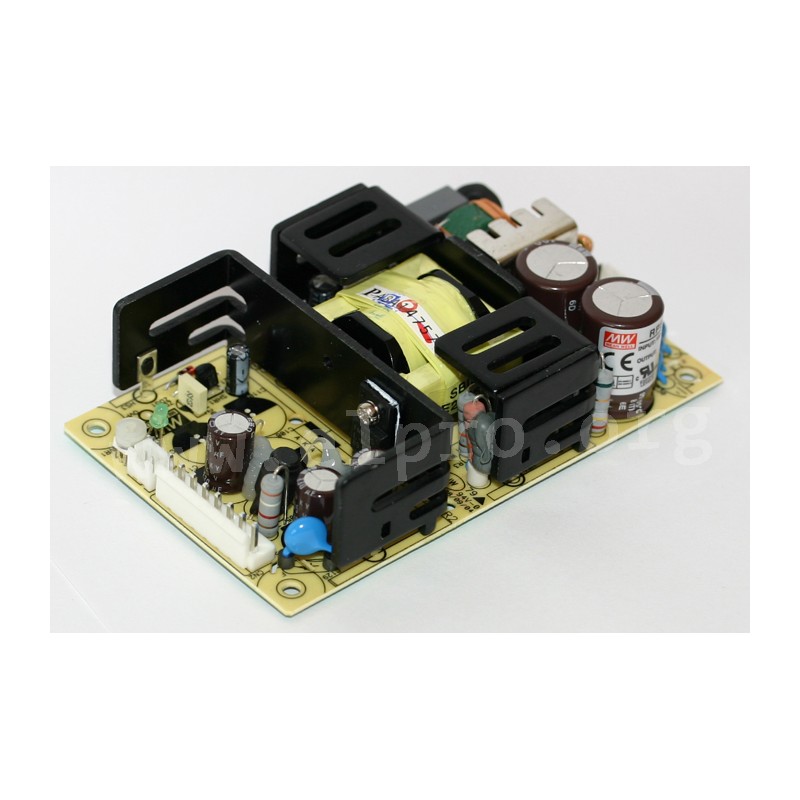

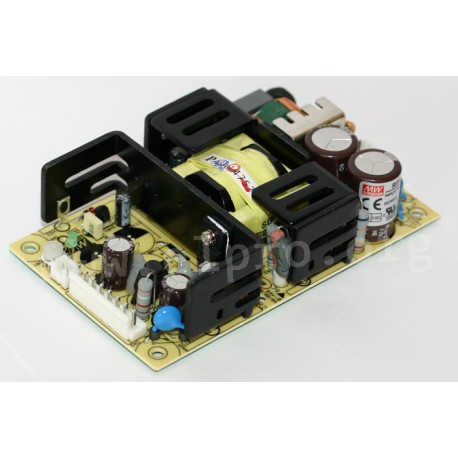

Mean Well power supply series RPS-75

Switching power supplies in a 5"x3" housing (open frame) with 75W, a universal input and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN60601-1, EN60335-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-75-3.3, RPS-75-5, RPS-75-12, RPS-75-15, RPS-75-24, RPS-75-36 and RPS-75-48.

  • single output
  • output: 49,5 to 76,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • leakage current: <150µA (earth) / <100µA (touch)
  • output voltage adjustment: +10/-5%
  • no-load power: <0,75W
  • overload protection: 140 to 180%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • weight: 260g

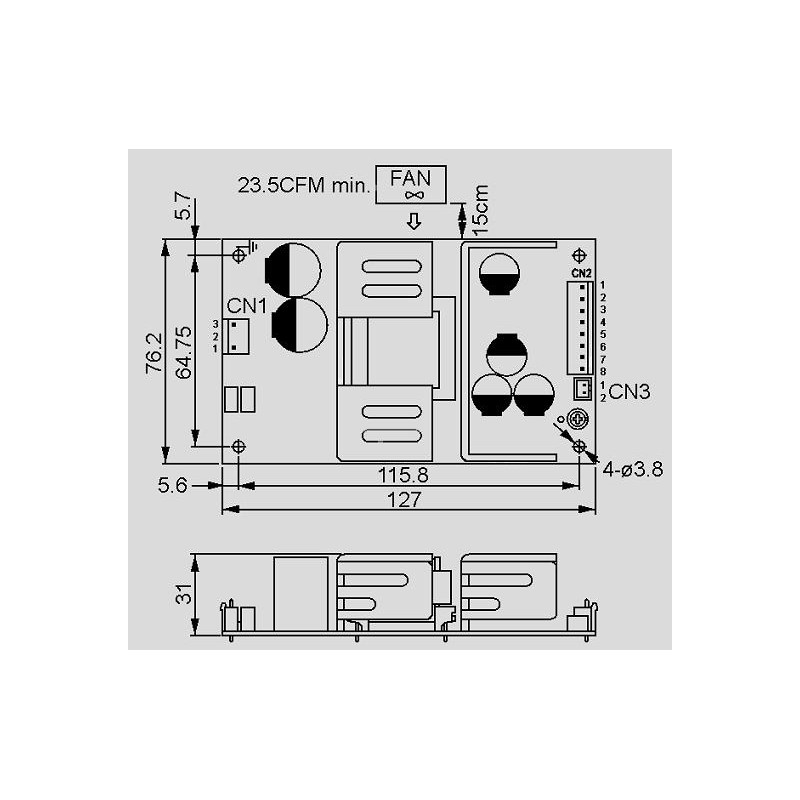

dimensions

RPS-75-5

30741 RPS-75-5 RPS-75-5 4711287427522 Mean Well power supply series RPS-75. Switching power supplies in a 5"x3" housing (open frame) with 75W, a universal input and a low no-load power. These devices are&nbsp;suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for&nbsp;nylon crimp terminals and comply with&nbsp;EN60601-1,&nbsp;EN60335-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RPS-75-3.3, RPS-75-5, RPS-75-12, RPS-75-15, RPS-75-24, RPS-75-36 and RPS-75-48. single output output: 49,5 to 76,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 50A leakage current: &lt;150&micro;A (earth) / &lt;100&micro;A (touch) output voltage adjustment: +10/-5% no-load power: &lt;0,75W overload protection: 140 to 180% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +70&deg;C weight: 260g

Specifications

manufacturer
Manufacturer's name RPS-75-5
GTIN 4711287427522
Output voltage [V] 5
Phase 2 phase
Efficiency [%] 78
Output current range [A] 0...14
Output voltage tolerance: [%] ±2
Output rated current [A] 14
Output power [W] 70
Output voltage adjustment [V] -5/ +10
Ripple [mV] 80
Data Sheet

Unit price

17,69 €

Volume discounts

Quantity Unit price
50 + 16,49 €

Stock: 0
Next incoming goods:
CW 05/2025
224 units

Further delivery:
CW 16/2025
