RPS-65-15

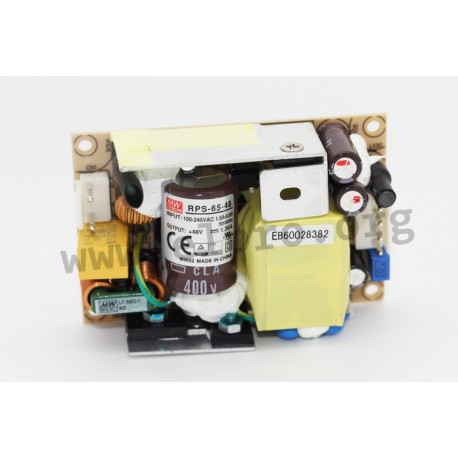

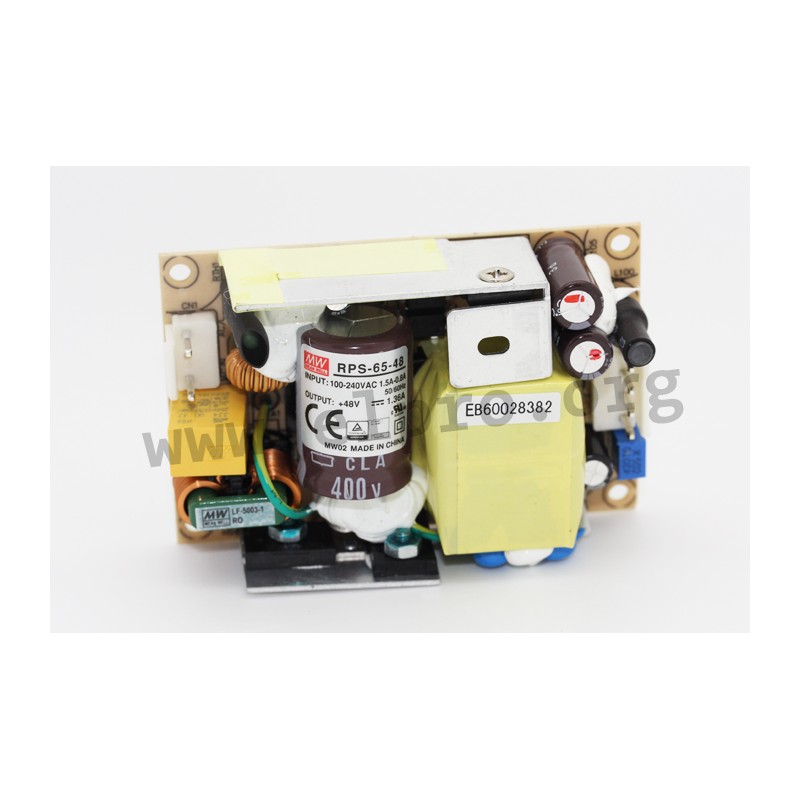

Mean Well power supply series RPS-65

Switching power supplies in a 3"x2" housing (open frame) with 65W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low no-load power (<0,1W) and comply with EN60601-1, EN60335-1, EN55015 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-65-3.3, RPS-65-5, RPS-65-7.5, RPS-65-12, RPS-65-15, RPS-65-24 and RPS-65-48.

  • single output
  • output: 33 to 65,3W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 30A
  • leakage current: <100µA (touch)
  • no-load power: <0,1W
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +70°C
  • weight: 110g
RPS-65 series by Meanwell

RPS-65-15

108265 RPS-65-15 RPS-65-15 4711287427478 Mean Well power supply series RPS-65. Switching power supplies in a 3"x2" housing (open frame) with 65W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology&nbsp;applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low no-load power (&lt;0,1W) and comply with&nbsp;EN60601-1, EN60335-1, EN55015 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RPS-65-3.3, RPS-65-5, RPS-65-7.5, RPS-65-12, RPS-65-15, RPS-65-24 and RPS-65-48. single output output: 33 to 65,3W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 30A leakage current: &lt;100&micro;A (touch) no-load power: &lt;0,1W overload protection: 115 to 150% withstand voltage&nbsp;I/P-O/P: 4000V AC operating temperature: -30 to +70&deg;C weight: 110g

Specifications

manufacturer
Manufacturer's name RPS-65-15
GTIN 4711287427478
Output voltage [V] 15
Efficiency [%] 89
Output current range [A] 0...4,34
Output voltage tolerance: [%] 1
Output power [W] 65,1
Ripple [mVp-p] 150
Data Sheet

Unit price

13,39 €

Volume discounts

Quantity Unit price
50 + 12,49 €

Stock: 19
Further delivery:
CW 12/2025
