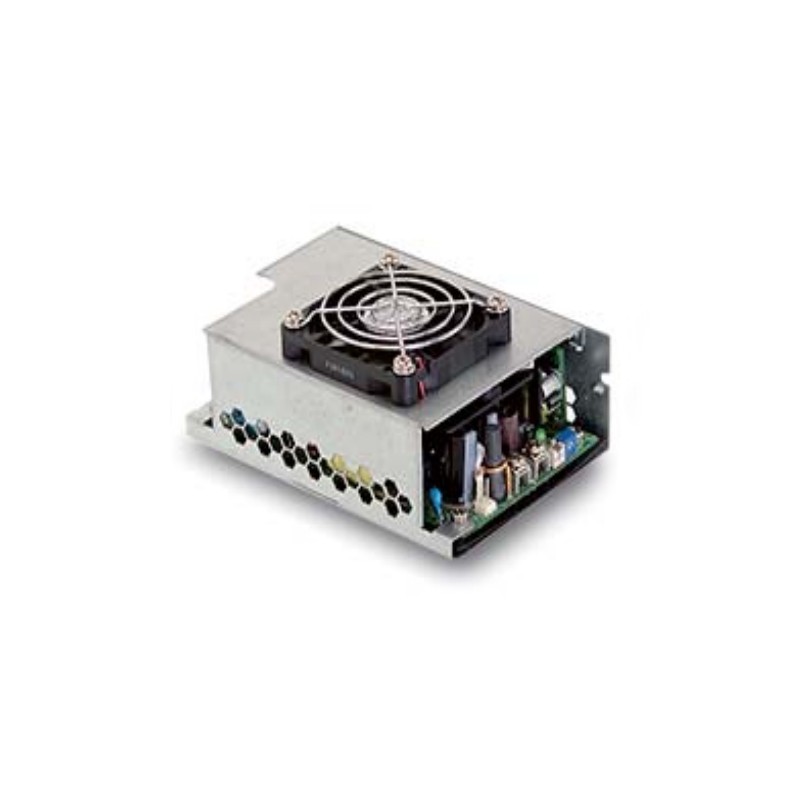

RPS-500-27-TF

Mean Well power supply series RPS-500

Switching power supplies in an enclosed housing with 500W, a fan on top (RPS_-TF) or on the side (RPS_-SF), a universal input and an LED indicator for power on. These devices are suitable for medical technology applications and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a low no-load power and comply with EN60601-1. We offer the following types of this Mean Well series: RPS-500-12-TF, RPS-500-15-TF, RPS-500-18-TF, RPS-500-24-TF, RPS-500-27-TF, RPS-500-36-TF, RPS-500-48-TF, RPS-500-12-SF, RPS-500-15-SF, RPS-500-18-SF, RPS-500-24-SF, RPS-500-27-SF, RPS-500-36-SF and RPS-500-48-SF.

  • single output
  • output: 499,2 to 500,4W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <220µA (earth) / <100µA (touch)
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C

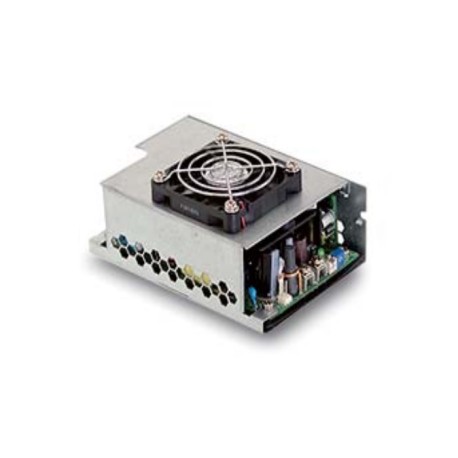

RPS-500-27-TF, Mean Well switching power supplies, 500W (forced air), for medical technology, fan on top or side, enclosed, RPS-

RPS-500-27-TF

244952 RPS-500-27-TF RPS-500-27-TF 4711287428529 Mean Well power supply series RPS-500. Switching power supplies in an enclosed housing with 500W, a fan on top (RPS_-TF) or on the side (RPS_-SF), a universal input and an LED indicator for power on. These devices are suitable for medical technology applications and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a low no-load power and comply with EN60601-1. We offer the following types of this Mean Well series: RPS-500-12-TF, RPS-500-15-TF, RPS-500-18-TF, RPS-500-24-TF, RPS-500-27-TF, RPS-500-36-TF, RPS-500-48-TF, RPS-500-12-SF, RPS-500-15-SF, RPS-500-18-SF, RPS-500-24-SF, RPS-500-27-SF, RPS-500-36-SF and RPS-500-48-SF. single output output: 499,2 to 500,4W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 80A leakage current: &lt;220µA (earth) / &lt;100µA (touch) overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C

Specifications

manufacturer
Manufacturer's name RPS-500-27-TF
GTIN 4711287428529
Output voltage [V] 27
Efficiency [%] 93,5
Output current [A] 18,5
Output voltage tolerance: [%] 2
Output power [W] 499,5
Ripple [mVp-p] 200
Data Sheet

Unit price

95,19 €

Stock: 0
Further delivery:
CW 16/2025
