RPS-500-24-C

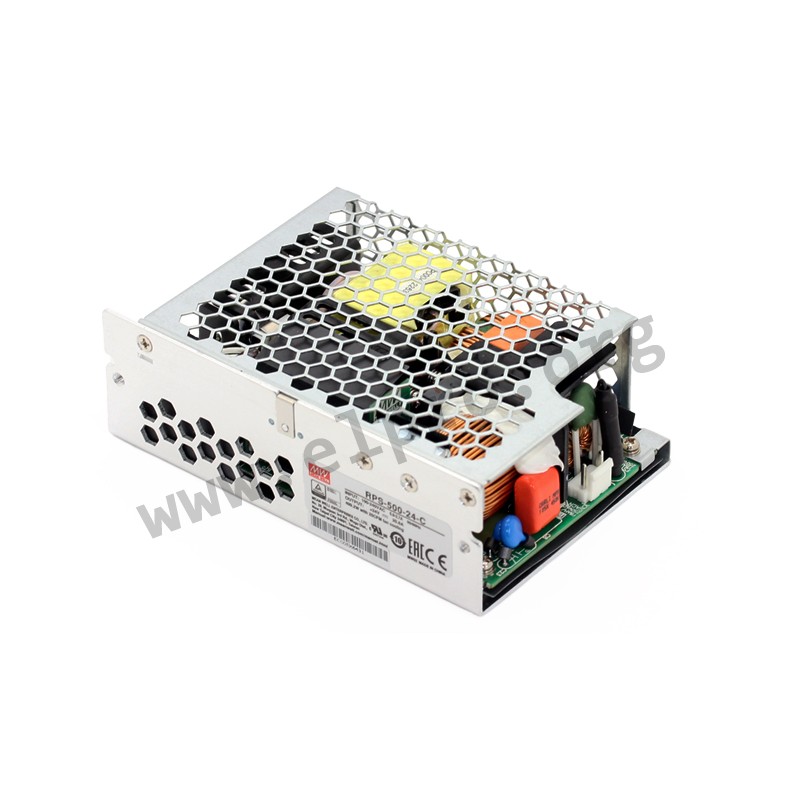

Mean Well power supply series RPS-500

Switching power supplies in an enclosed 5"x3" housing with 320W (500W with 25cfm forced air), a universal input, a built-in auxiliary power (12V/0,5A), an LED indicator for power on, a low no-load power (<0,5W) and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 4000m and comply with EN60601-1, EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RPS-500-12-C, RPS-500-15-C, RPS-500-18-C, RPS-500-24-C, RPS-500-27-C, RPS-500-36-C and RPS-500-48-C.

  • single output
  • output: 499,2 to 500,4W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <220µA (earth) / <100µA (touch)
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 540g

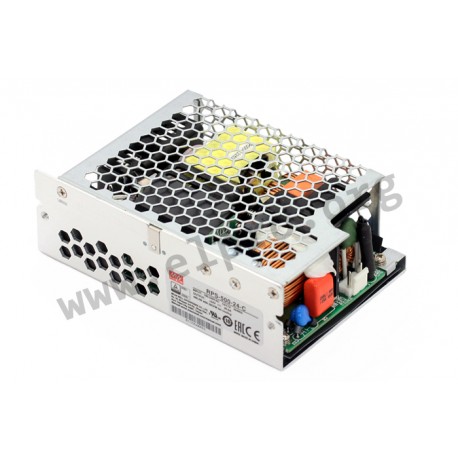

RPS-500-24-C, Mean Well switching power supplies, 500W (forced air), for medical technology, enclosed, RPS-500 series

RPS-500-24-C

114185 RPS-500-24-C RPS-500-24-C 4711287428376 Mean Well power supply series RPS-500. Switching power supplies in an enclosed 5"x3" housing with 320W (500W with 25cfm forced air), a universal input, a built-in&nbsp;auxiliary power (12V/0,5A), an LED indicator for power on, a low no-load power (&lt;0,5W) and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, overvoltage as well as short&nbsp;circuit. They are suitable for an operating altitude of up to 4000m and comply with&nbsp;EN60601-1, EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series:&nbsp;RPS-500-12-C, RPS-500-15-C, RPS-500-18-C, RPS-500-24-C, RPS-500-27-C, RPS-500-36-C and RPS-500-48-C. single output output: 499,2 to 500,4W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 80A leakage current: &lt;220&micro;A (earth) / &lt;100&micro;A (touch) overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70&deg;C weight: 540g

Specifications

manufacturer
Manufacturer's name RPS-500-24-C
GTIN 4711287428376
Output voltage [V] 24
Efficiency [%] 93
Output current [A] 20,8
Output voltage tolerance: [%] 2
Output power [W] 499,2
Ripple [mVp-p] 200
Data Sheet

Unit price

85,49 €

Volume discounts

Quantity Unit price
50 + 83,69 €

Stock: 7
Further delivery:
CW 12/2025
