> Power supplies>Power supplies>Switching power supplies, open frame>Mean Well switching power supplies, 45W, for medical technology, open frame (PCB), RPS-45 series>RPS-45-15

Manufacturers

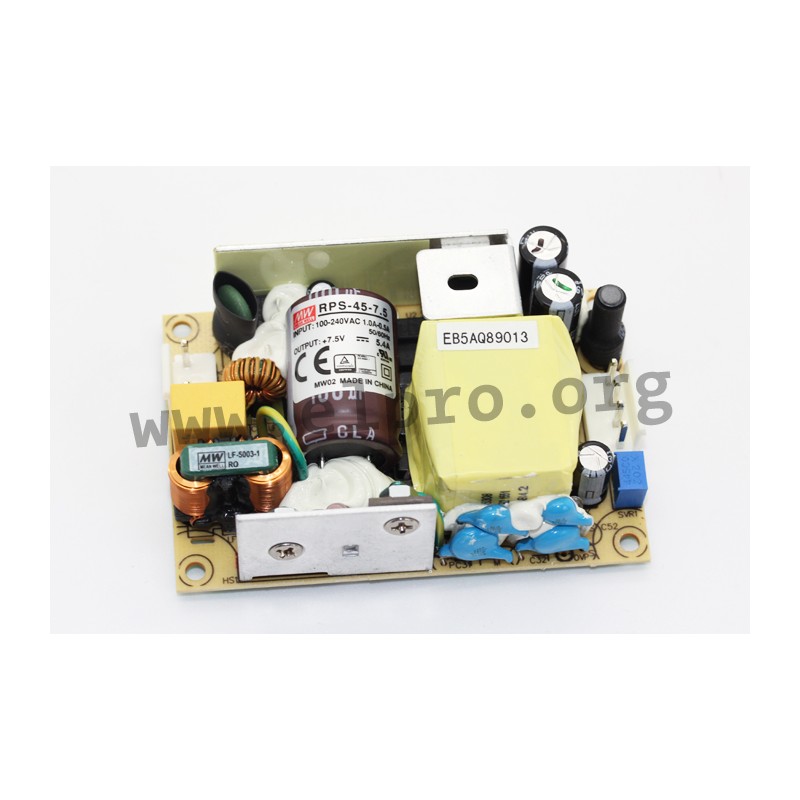

RPS-45-15

Mean Well power supply series RPS-45

Open frame type switching power supplies with 45W, a low no-load power (<0,1W), a universal input and pin strips for nylon crimp terminals. These devices are suitable for medical applications (2xMOPP) and comply with EN60601-1, EN60335-1, EN61000-3-2 as well as EN61000-3-3. They are suitable for an operating altitude of up to 4000m and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: RPS-45-3.3, RPS-45-5, RPS-45-7.5, RPS-45-12, RPS-45-15, RPS-45-24 and RPS-45-48.

  • single output
  • output: 26,4 to 45,6W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 30A
  • leakage current: <100µA
  • no-load power: <0,1W
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +70°C
  • weight: 110g
RPS-45-15, Mean Well switching power supplies, 45W, for medical technology, open frame (PCB), RPS-45 series

RPS-45-15

108258 RPS-45-15 RPS-45-15 4711287427355 Mean Well power supply series RPS-45. Open frame type switching power supplies with 45W, a low no-load power (&lt;0,1W), a universal input and pin strips for nylon crimp terminals. These devices are suitable for medical applications (2xMOPP) and comply with&nbsp;EN60601-1, EN60335-1, EN61000-3-2 as well as EN61000-3-3. They are&nbsp;suitable for an operating&nbsp;altitude of up to 4000m and are protected against overload (auto recovery), overvoltage as well as short&nbsp;circuit. We offer the following types of this Mean Well series:&nbsp;RPS-45-3.3, RPS-45-5, RPS-45-7.5, RPS-45-12, RPS-45-15, RPS-45-24 and RPS-45-48. single output output: 26,4 to 45,6W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 30A leakage current: &lt;100&micro;A no-load power: &lt;0,1W overload protection: 115 to 150% withstand voltage I/P-O/P: 4000V AC operating temperature: -30 to +70&deg;C weight: 110g

Specifications

manufacturer
Manufacturer's name RPS-45-15
GTIN 4711287427355
Output voltage [V] 15
Efficiency [%] 89
Output current range [A] 0...3
Output voltage tolerance: [%] 1
Output power [W] 45
Ripple [mVp-p] 150
Data Sheet

Unit price

12,59 €

Volume discounts

Quantity Unit price
50 + 11,69 €

Stock: 0
Next incoming goods:
CW 05/2025
100 units

Further delivery:
CW 16/2025
