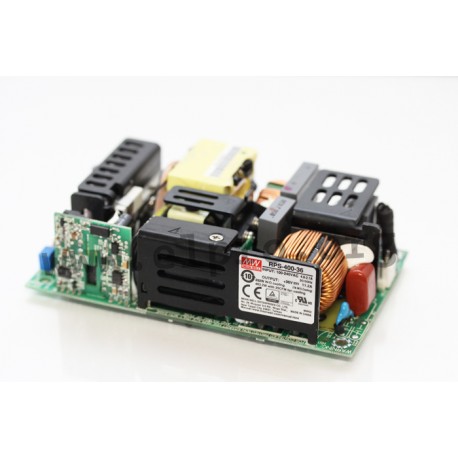

RPS-400-36

Mean Well power supply series RPS-400

Switching power supplies in a compact 5"x3" housing (open frame) with 250W (400W with 25cfm forced air), a universal input and a low no-load power (<0,5W). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN60601-1, EN60335-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-400-12, RPS-400-15, RPS-400-18, RPS-400-24, RPS-400-27, RPS-400-36 and RPS-400-48.

  • single output
  • output: 399,6 to 403,2W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <250µA (earth) / <100µA (touch)
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 390g
RPS-400-36

RPS-400-36

108304 RPS-400-36 RPS-400-36 4711287428048 Mean Well power supply series RPS-400. Switching power supplies in a compact 5"x3" housing (open frame) with 250W (400W with 25cfm forced air), a universal input and a low no-load power (&lt;0,5W). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN60601-1, EN60335-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-400-12, RPS-400-15, RPS-400-18, RPS-400-24, RPS-400-27, RPS-400-36 and RPS-400-48. single output output: 399,6 to 403,2W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 80A leakage current: &lt;250µA (earth) / &lt;100µA (touch) overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C weight: 390g

Specifications

manufacturer
Manufacturer's name RPS-400-36
GTIN 4711287428048
Output voltage [V] 36
Efficiency [%] 93
Output current range [A] 11,2
Output voltage tolerance: [%] 1
Output power [W] 403,2
Ripple [mVp-p] 250
Data Sheet

Unit price

67,49 €

Volume discounts

Quantity Unit price
50 + 66,09 €

Stock: 27
Further delivery:
CW 12/2025
