RPS-400-24-SF

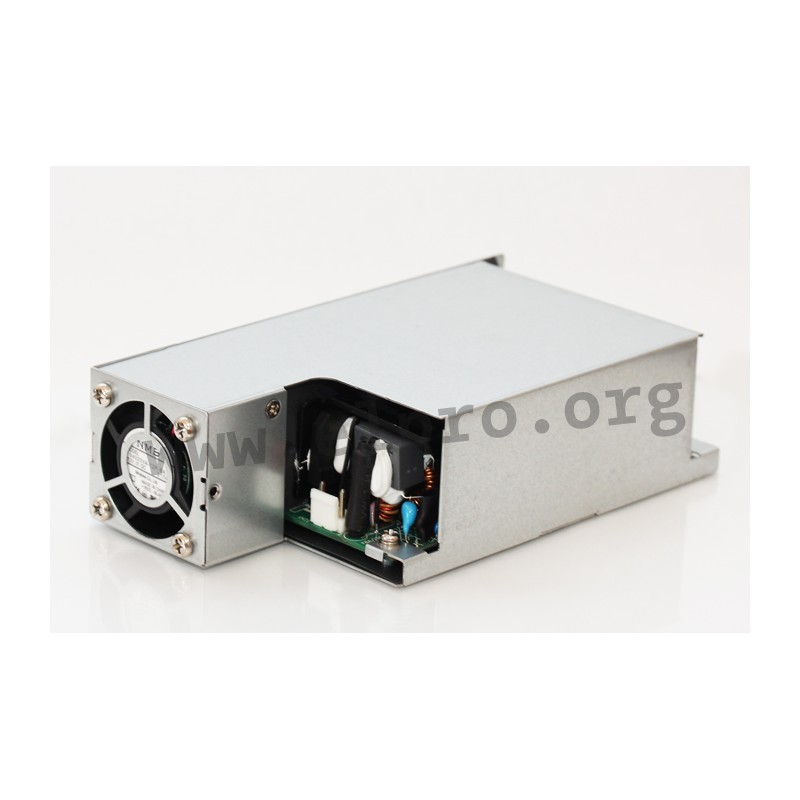

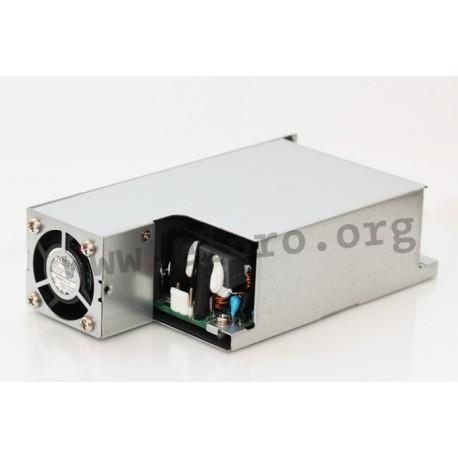

Mean Well power supply series RPS-400

Switching power supplies in a 5"x3" housing with 250W (400W with 25cfm forced air), a universal input, a low no-load power (<0,5W) and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for an operating altitude of up to 4000m and comply with EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the types RPS-400-12-SF, RPS-400-15-SF, RPS-400-18-SF, RPS-400-24-SF, RPS-400-27-SF, RPS-400-36-SF and RPS-400-48-SF with a fan on the side as well as the power supplies RPS-400-12-TF, RPS-400-15-TF, RPS-400-18-TF, RPS-400-24-TF, RPS-400-27-TF, RPS-400-36-TF and RPS-400-48-TF with a fan on the top.

  • single output
  • output: 399,6 to 403,2W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <250µA (earth) / <100µA (touch)
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight RPS-400_-TF: 580g
  • weight RPS-400_-SF: 640g
RPS-400-24-SF

RPS-400-24-SF

108298 RPS-400-24-SF RPS-400-24-SF 4711287428239 Mean Well power supply series RPS-400. Switching power supplies in a 5"x3" housing with 250W (400W with 25cfm forced air), a universal input, a low no-load power (&lt;0,5W) and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for an operating altitude of up to 4000m and comply with EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the types RPS-400-12-SF, RPS-400-15-SF, RPS-400-18-SF, RPS-400-24-SF, RPS-400-27-SF, RPS-400-36-SF and RPS-400-48-SF with a fan on the side as well as the power supplies RPS-400-12-TF, RPS-400-15-TF, RPS-400-18-TF, RPS-400-24-TF, RPS-400-27-TF, RPS-400-36-TF and RPS-400-48-TF with a fan on the top. single output output: 399,6 to 403,2W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 80A leakage current: &lt;250µA (earth) / &lt;100µA (touch) overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C weight RPS-400_-TF: 580g weight RPS-400_-SF: 640g

Specifications

manufacturer
Manufacturer's name RPS-400-24-SF
GTIN 4711287428239
Output voltage [V] 24
Efficiency [%] 93
Output current range [A] 16,7
Output voltage tolerance: [%] 2
Output power [W] 400,8
Ripple [mVp-p] 200
Data Sheet

Unit price

78,59 €

Volume discounts

Quantity Unit price
50 + 75,99 €

Stock: 66
Further delivery:
CW 12/2025
