RPS-400-12-C

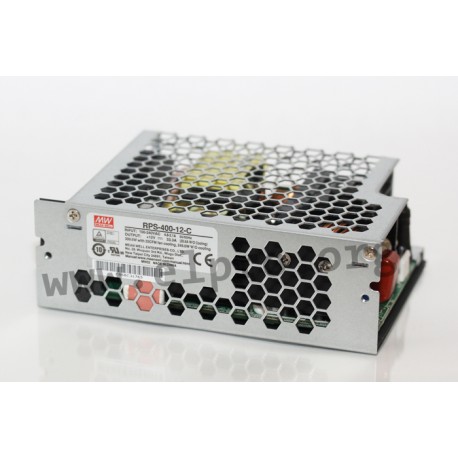

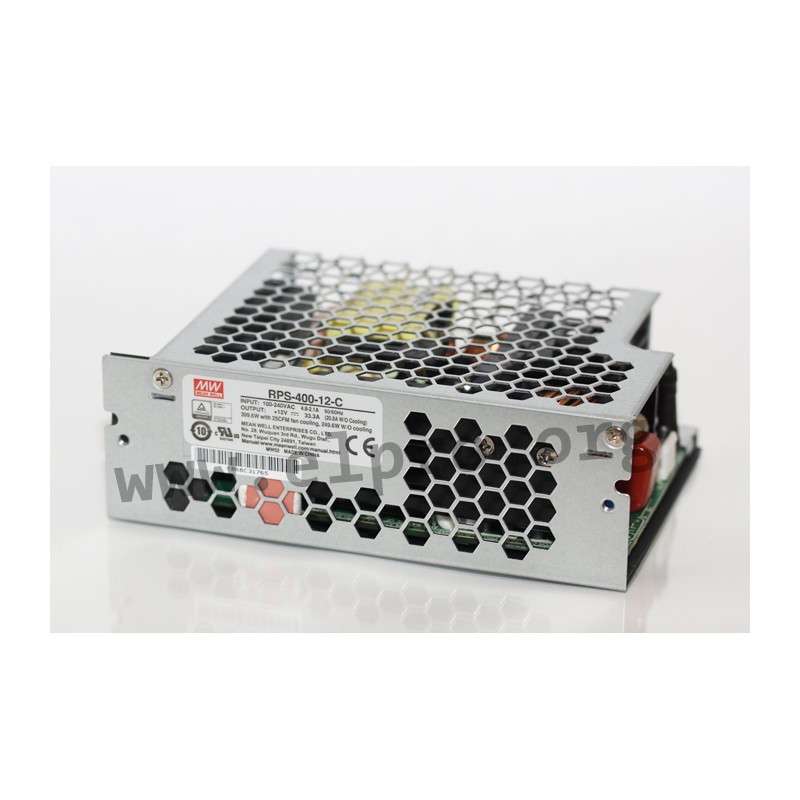

Mean Well power supply series RPS-400-C

Switching power supplies in an enclosed 5"x3" housing with 250W (400W with 25cfm forced air), a low no-load power (<0,5W) and a universal input. These devices are suitable for medical technology applications (2xMOPP) as well as for an operating altitude of up to 4000m and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-400-12-C, RPS-400-15-C, RPS-400-18-C, RPS-400-24-C, RPS-400-27-C, RPS-400-36-C and RPS-400-48-C.

  • single output
  • output: 399,6 to 403,2W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <250µA (earth) / <100µA (touch)
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 510g
RPS-400-12-C

RPS-400-12-C

108289 RPS-400-12-C RPS-400-12-C 4711287428123 Mean Well power supply series RPS-400-C. Switching power supplies in an enclosed 5"x3" housing with 250W (400W with 25cfm forced air), a low no-load power (&lt;0,5W) and a universal input. These devices are suitable for medical technology applications (2xMOPP) as well as for an operating altitude of up to 4000m and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-400-12-C, RPS-400-15-C, RPS-400-18-C, RPS-400-24-C, RPS-400-27-C, RPS-400-36-C and RPS-400-48-C. single output output: 399,6 to 403,2W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 80A leakage current: &lt;250µA (earth) / &lt;100µA (touch) overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C weight: 510g

Specifications

manufacturer
Manufacturer's name RPS-400-12-C
GTIN 4711287428123
Output voltage [V] 12
Efficiency [%] 91,5
Output current range [A] 33,3
Output voltage tolerance: [%] 3
Output power [W] 399,6
Ripple [mVp-p] 120
Data Sheet

Unit price

72,29 €

Volume discounts

Quantity Unit price
50 + 70,79 €

Stock: 30
Further delivery:
CW 16/2025
