RPS-300-24

Mean Well power supply series RPS-300

Switching power supplies in a 5"x3" housing (open frame) with 200W resp. 300W with forced air (20,5cfm), a built-in auxiliary output (12V/0,5A), a universal input, a low no-load power and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a service life of more than 40.000 hours and comply with EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-300-12, RPS-300-15, RPS-300-24, RPS-300-27 and RPS-300-48.

  • single output
  • output: 300W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <200µA (earth) / <70µA (touch)
  • output voltage adjustment: ±5%
  • no-load power: <0,5W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 370g

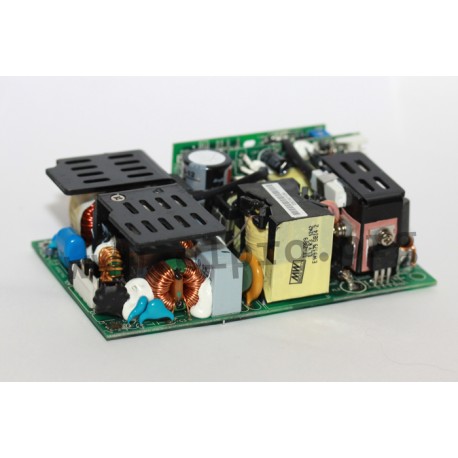

Meanwell RPS-300 series

RPS-300-24

37897 RPS-300-24 RPS-300-24 4711287427911 Mean Well power supply series RPS-300. Switching power supplies in a 5"x3" housing (open frame) with 200W resp. 300W with forced air (20,5cfm), a built-in auxiliary output (12V/0,5A), a universal input, a low no-load power and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a service life of more than 40.000 hours and comply with EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-300-12, RPS-300-15, RPS-300-24, RPS-300-27 and RPS-300-48. single output output: 300W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A leakage current: &lt;200µA (earth) / &lt;70µA (touch) output voltage adjustment: ±5% no-load power: &lt;0,5W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C weight: 370g

Specifications

manufacturer
Manufacturer's name RPS-300-24
GTIN 4711287427911
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 92,5
Output current range [A] 0...8,33
Output voltage tolerance: [%] 2
Output power [W] 200
Ripple [mVp-p] 150
Data Sheet
