RPS-300-15-C

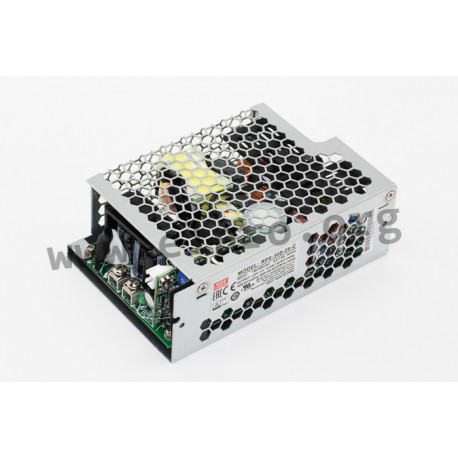

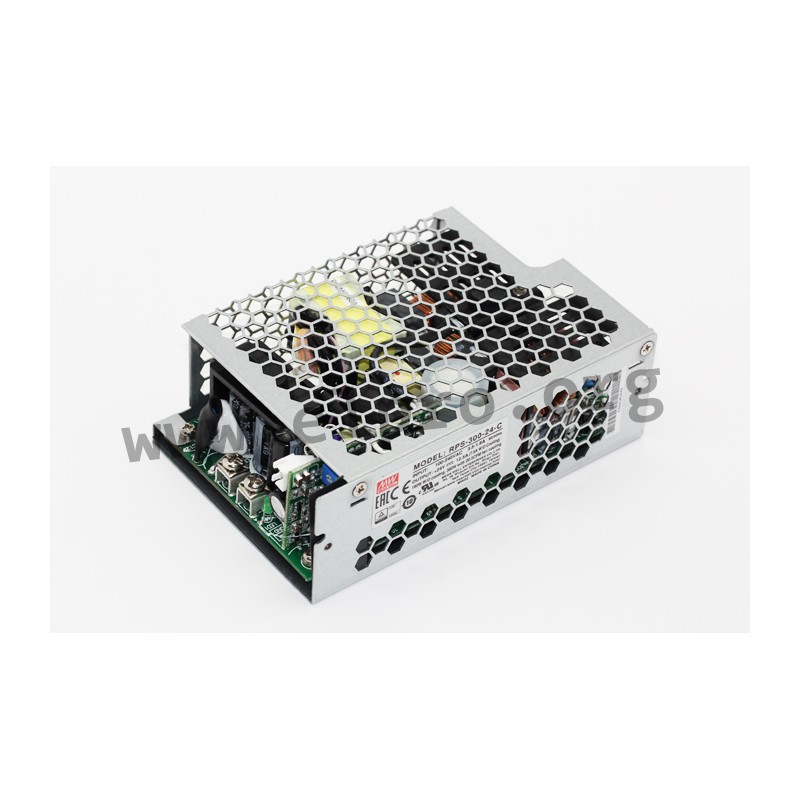

Mean Well power supply series RPS-300

Switching power supplies in an enclosed housing with 200W (300W with 20cfm forced air), a built-in auxiliary power (12V/0,5A), a universal input and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN60601-1, EN60335-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-300-12-C, RPS-300-15-C, RPS-300-24-C, RPS-300-27-C and RPS-300-48-C.

  • single output
  • output: 300 to 300,24W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <200µA (earth) / <70µA (touch)
  • output voltage adjustment: ±5%
  • no-load power: <0,5W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 370g
Mean Well RPS-300 series

RPS-300-15-C

109158 RPS-300-15-C RPS-300-15-C 4711287427959 Mean Well power supply series RPS-300. Switching power supplies in an&nbsp;enclosed housing with 200W (300W with 20cfm forced air), a&nbsp;built-in auxiliary power (12V/0,5A), a universal input and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and are&nbsp;protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with&nbsp;EN60601-1,&nbsp;EN60335-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well&nbsp;series:&nbsp;RPS-300-12-C, RPS-300-15-C, RPS-300-24-C, RPS-300-27-C and RPS-300-48-C. single output output: 300 to 300,24W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A leakage current: &lt;200&micro;A (earth) / &lt;70&micro;A (touch) output voltage adjustment:&nbsp;&plusmn;5% no-load power: &lt;0,5W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC&nbsp; withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70&deg;C weight: 370g

Specifications

manufacturer
Manufacturer's name RPS-300-15-C
GTIN 4711287427959
Output voltage [V] 15
Efficiency [%] 90
Output current range [A] 0...20
Output voltage tolerance: [%] 3
Output power [W] 300
Ripple [mVp-p] 120
