RPS-30-7.5

Mean Well power supply series RPS-30

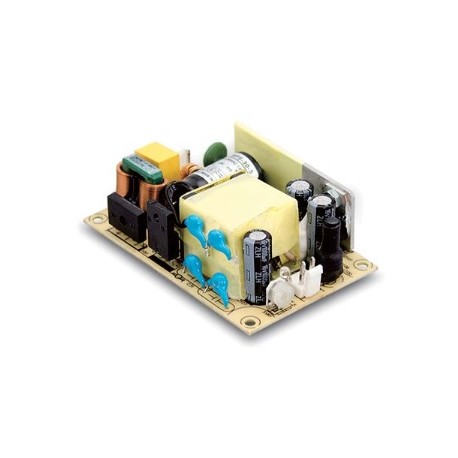

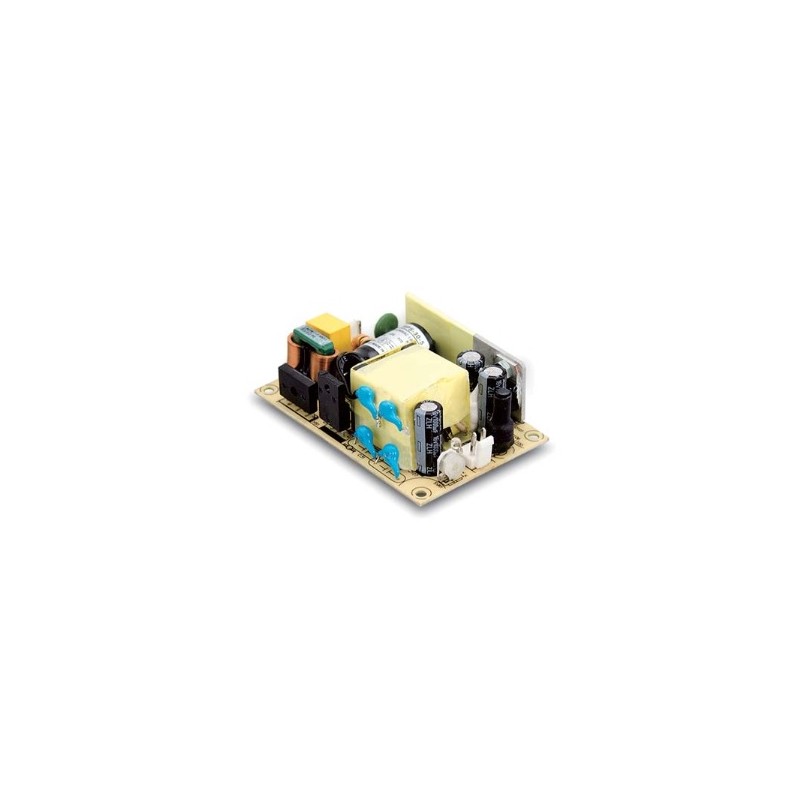

Open frame type switching power supplies with 30W, a universal input, a low no-load power and PC pins for nylon crimp terminals. These devices are suitable for medical applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN60601-1. We offer the following types of this Mean Well series: RPS-30-3.3, RPS-30-5, RPS-30-7.5, RPS-30-12, RPS-30-15, RPS-30-24 and RPS-30-48.

  • single output
  • output: 19,8 to 30W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 60A
  • leakage current: <100µA
  • no-load power: <0,1W
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +70°C
  • weight: 90g
RPS-30-series by Meanwell

RPS-30-7.5

108249 RPS-30-7.5 RPS-30-7.5 4711287427317 Mean Well power supply series RPS-30. Open frame type switching power supplies with 30W, a&nbsp;universal input, a low no-load power and PC pins for nylon crimp terminals. These devices are suitable for medical applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with&nbsp;EN60601-1. We offer the following types of this Mean Well series:&nbsp;RPS-30-3.3, RPS-30-5, RPS-30-7.5, RPS-30-12, RPS-30-15, RPS-30-24 and RPS-30-48. single output output: 19,8 to 30W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 60A leakage current: &lt;100&micro;A no-load power: &lt;0,1W overload protection: 115 to 150% withstand voltage I/P-O/P: 4000V AC operating temperature: -30 to +70&deg;C weight: 90g

Specifications

manufacturer
Manufacturer's name RPS-30-7.5
GTIN 4711287427317
Output voltage [V] 7,5
Efficiency [%] 84
Output current range [A] 0...4
Output voltage tolerance: [%] 2
Output power [W] 30
Ripple [mVp-p] 80
Data Sheet

Unit price

11,29 €

Volume discounts

Quantity Unit price
50 + 10,69 €

Stock: 0
Next incoming goods:
CW 09/2025
20 units

Further delivery:
CW 12/2025
