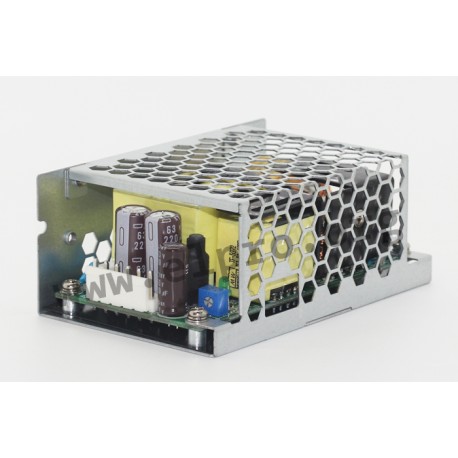

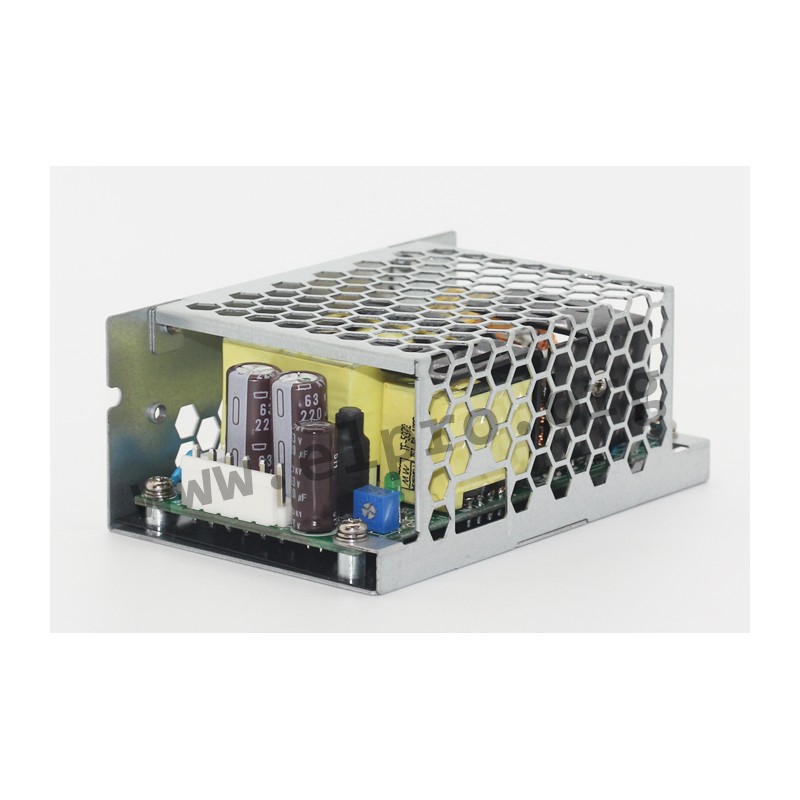

RPS-200-24-C

Mean Well power supply series RPS-200-C

Switching power supplies in an enclosed housing with 140W resp. 200W with forced air (10cfm), a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a service life of more than 65.000 hours and comply with EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-200-12-C, RPS-200-15-C, RPS-200-24-C, RPS-200-27-C and RPS-200-48-C.

  • single output
  • output: 200,4 to 202,5W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 30A
  • leakage current: <190µA (earth) / <100µA (touch)
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 300g
Mean Well RPS-200-C series

RPS-200-24-C

108283 RPS-200-24-C RPS-200-24-C 4711287427867 Mean Well power supply series RPS-200-C. Switching power supplies in an enclosed housing with 140W resp. 200W with forced air (10cfm), a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a service life of more than 65.000 hours and comply with&nbsp;EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RPS-200-12-C, RPS-200-15-C, RPS-200-24-C, RPS-200-27-C and RPS-200-48-C. single output output: 200,4 to 202,5W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 30A leakage current: &lt;190&micro;A (earth) / &lt;100&micro;A (touch) overload protection: 110 to 140% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70&deg;C weight: 300g

Specifications

manufacturer
Manufacturer's name RPS-200-24-C
GTIN 4711287427867
Output voltage [V] 24
Efficiency [%] 94
Output current range [A] 8,4
Output voltage tolerance: [%] 1
Output power [W] 201,6
Ripple [mVp-p] 150
Data Sheet

Unit price

39,99 €

Volume discounts

Quantity Unit price
50 + 38,99 €

Stock: 298
Further delivery:
CW 12/2025
