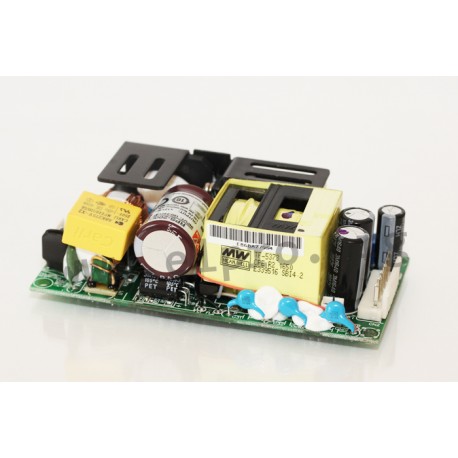

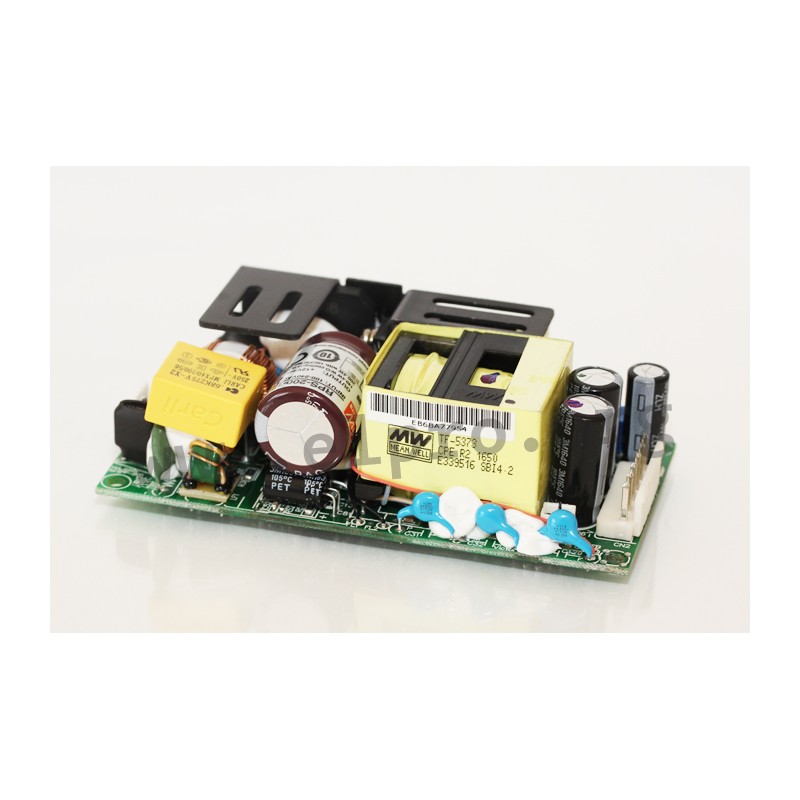

RPS-200-12

Mean Well power supply series RPS-200

Switching power supplies in an open frame housing with 140W convection resp. 200W with forced air (10cfm), a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a service life of up to 65.000 hours and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-200-12, RPS-200-15, RPS-200-24, RPS-200-27 and RPS-200-48.

  • single output
  • output: 200,4 to 202,5W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 30A
  • leakage current: <190µA (earth) / <100µA (touch)
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 190g
RPS-200-12

RPS-200-12

108278 RPS-200-12 RPS-200-12 4711287427799 Mean Well power supply series RPS-200. Switching power supplies in an open frame housing with 140W convection resp. 200W with&nbsp;forced air (10cfm), a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short&nbsp;circuit. They have a service life of up to 65.000 hours and comply with&nbsp;EN60601-1, EN55011 class&nbsp;B, EN61000-3-2 as well as EN61000-3-3. We offer the&nbsp;following types of this Mean Well series:&nbsp;RPS-200-12, RPS-200-15, RPS-200-24, RPS-200-27 and RPS-200-48. single output output: 200,4 to 202,5W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 30A leakage current: &lt;190&micro;A (earth) / &lt;100&micro;A (touch) overload protection: 110 to 140% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70&deg;C weight: 190g

Specifications

manufacturer
Manufacturer's name RPS-200-12
GTIN 4711287427799
Output voltage [V] 12
Efficiency [%] 93
Output current range [A] 16,7
Output voltage tolerance: [%] 2
Output power [W] 200,4
Ripple [mVp-p] 100
Data Sheet

Unit price

40,39 €

Volume discounts

Quantity Unit price
50 + 39,49 €

Stock: 10
Further delivery:
CW 09/2025
