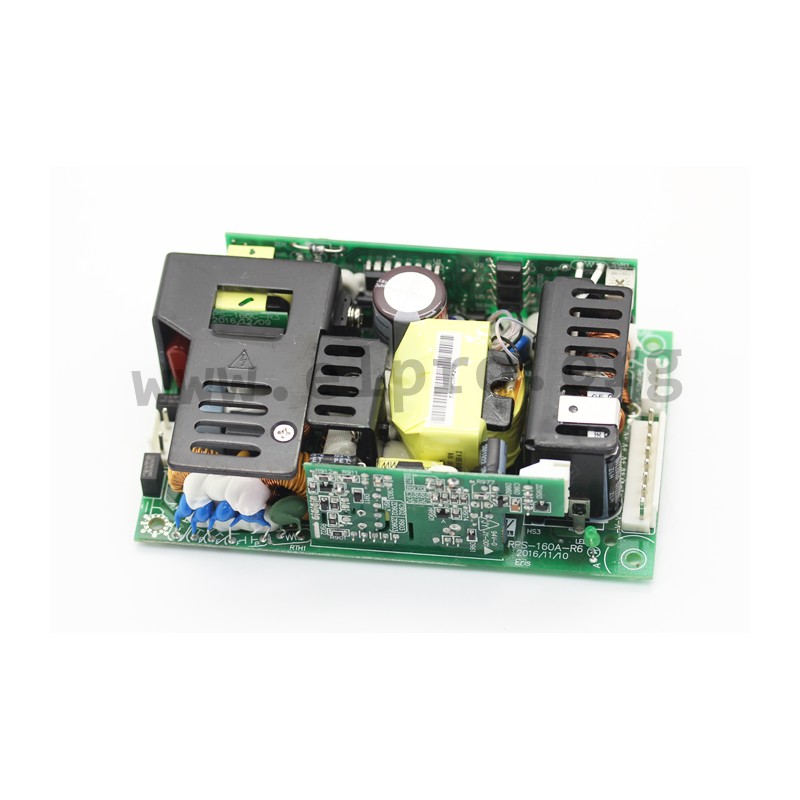

RPSG-160-12

Mean Well power supply series RPSG-160

Switching power supplies in an open frame housing with 110W convection resp. 160W with forced air (20,5cfm), a universal input, a peak load function and a pin strip connection for nylon crimp terminals. These devices have a standby output (5V/0,8A), are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They have a very low no-load power consumption (<0,5W) and comply with EN60601-1 as well as EN55011 class B. We offer the following types of this Mean Well series: RPSG-160-5, RPSG-160-12, RPSG-160-15, RPSG-160-24 and RPSG-160-48.

  • single output
  • output: 110W convection, 160W with forced air
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current (earth): <160μA
  • leakage current (touch): <100μA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • weight: 320g

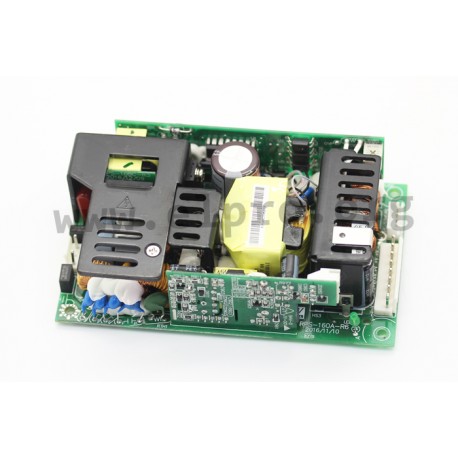

RPSG-160-12, Mean Well switching power supplies, 160W (forced air), 5V standby output, for medical technology, RPS-160 series

RPSG-160-12

135896 RPSG-160-12 RPSG-160-12 4711287428826 Mean Well power supply series RPSG-160. Switching power supplies in an open frame housing with 110W convection resp. 160W with forced air (20,5cfm), a universal input, a peak load function and a pin strip connection for nylon crimp terminals. These devices have a standby output (5V/0,8A), are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They have a very low no-load power consumption (&lt;0,5W) and comply with EN60601-1 as well as EN55011 class B. We offer the following types of this Mean Well series: RPSG-160-5, RPSG-160-12, RPSG-160-15, RPSG-160-24 and RPSG-160-48. single output output: 110W convection, 160W with forced air input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A leakage current (earth): &lt;160μA leakage current (touch): &lt;100μA overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +70°C weight: 320g

Specifications

manufacturer
Manufacturer's name RPSG-160-12
GTIN 4711287428826
Output voltage [V] 12
Efficiency [%] 87
Output current range [A] 0...12,9
Output voltage tolerance: [%] 3
Output power [W] 159,8
Ripple [mVp-p] 80
Data Sheet

Unit price

45,29 €

Volume discounts

Quantity Unit price
50 + 44,39 €

Stock: 30
Further delivery:
CW 12/2025
