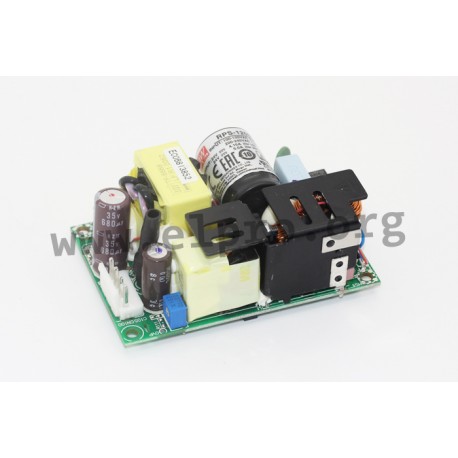

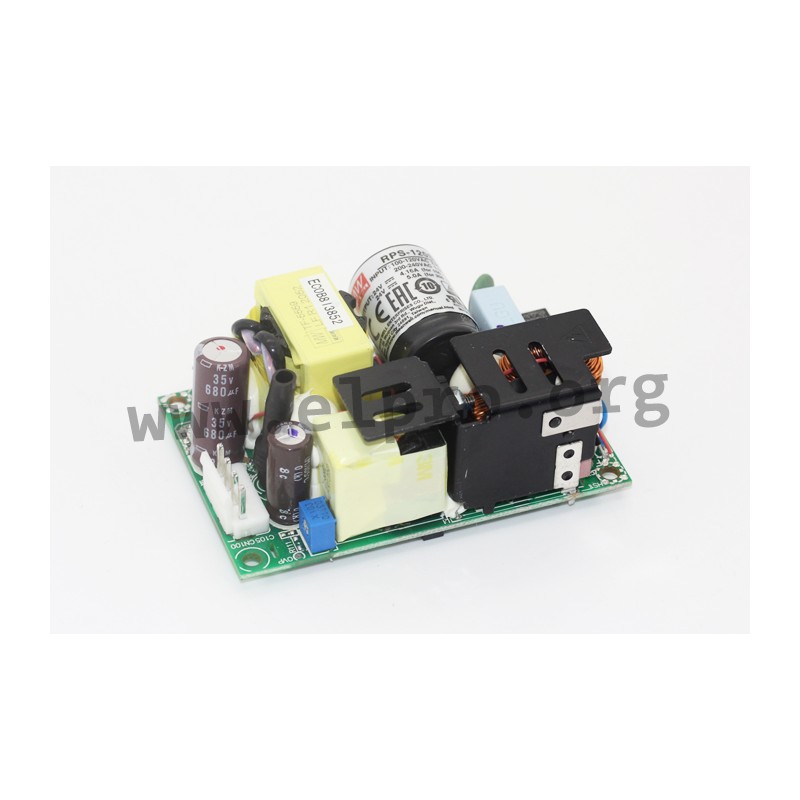

RPS-120S-12

Mean Well power supply series RPS-120S

Switching power supplies in an open frame 3"x2" housing with 120W, a low no-load power (<0,3W) and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for an operating altitude of up to 4000m and comply with EN60601-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-120S-12, RPS-120S-15, RPS-120S-24, RPS-120S-27 and RPS-120S-48.

  • single output
  • output: 114 to 120W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <150µA (earth) / <80µA (touch)
  • overload protection: 130 to 160%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +85°C
  • weight: 130g
RPS-120S-12, Mean Well switching power supplies, 120W, 3"x2", for medical technology, open frame (PCB), RPS-120S series

RPS-120S-12

114179 RPS-120S-12 RPS-120S-12 4711287427690 Mean Well power supply series RPS-120S. Switching power&nbsp;supplies in an open frame 3"x2"&nbsp;housing with 120W, a low no-load power (&lt;0,3W) and a pin strip connection for nylon crimp terminals.&nbsp;These devices are suitable for medical&nbsp;technology applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for an operating altitude of up to 4000m and comply with&nbsp;EN60601-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RPS-120S-12, RPS-120S-15, RPS-120S-24, RPS-120S-27 and RPS-120S-48. single output output: 114 to 120W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A leakage current: &lt;150&micro;A (earth) / &lt;80&micro;A (touch) overload protection: 130 to 160% withstand voltage&nbsp;I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +85&deg;C weight: 130g

Specifications

manufacturer
Manufacturer's name RPS-120S-12
GTIN 4711287427690
Output voltage [V] 12
Efficiency [%] 91
Output current [A] 9,5
Output voltage tolerance: [%] 2
Output power [W] 114
Ripple [mVp-p] 100
Data Sheet

Unit price

28,19 €

Volume discounts

Quantity Unit price
50 + 26,59 €

Stock: 20
Further delivery:
CW 17/2025
