RPS-120-48-C

Mean Well power supply series RPS-120-C

Switching power supplies in an enclosed 4"x2" housing (10cfm forced air), a universal input, a low no-load power (<0,3W) and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and comply with EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. They are suitable for an operating altitude of up to 4000m and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. We offer the following types of this Mean Well series: RPS-120-12-C, RPS-120-15-C, RPS-120-24-C, RPS-120-27-C and RPS-120-48-C.

  • single output
  • output: 120 to 121,5W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <150µA (earth) / <80µA (touch)
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 240g

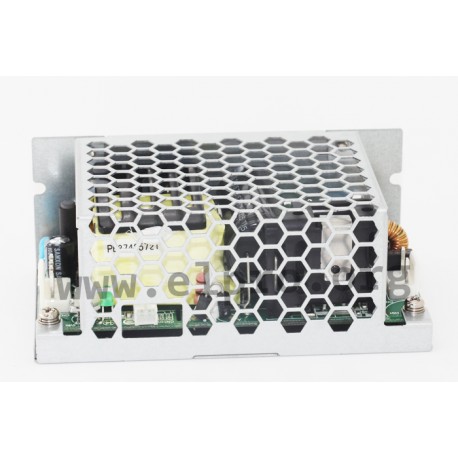

Mean Well RPS-120-C series

RPS-120-48-C

108277 RPS-120-48-C RPS-120-48-C 4711287427683 Mean Well power supply series&nbsp;RPS-120-C. Switching power supplies in an enclosed&nbsp;4"x2"&nbsp;housing (10cfm forced air), a universal input, a low no-load power (&lt;0,3W) and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and comply with&nbsp;EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. They are&nbsp;suitable for an operating&nbsp;altitude of up to 4000m and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. We offer the following types of this Mean Well series:&nbsp;RPS-120-12-C, RPS-120-15-C, RPS-120-24-C, RPS-120-27-C and RPS-120-48-C. single output output: 120 to 121,5W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A leakage current: &lt;150&micro;A (earth) / &lt;80&micro;A (touch) overload protection: 115 to 150% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70&deg;C weight: 240g

Specifications

manufacturer
Manufacturer's name RPS-120-48-C
GTIN 4711287427683
Output voltage [V] 48
Efficiency [%] 91
Output current range [A] 2,5
Output voltage tolerance: [%] 1
Output power [W] 120
Ripple [mVp-p] 200
Data Sheet

Unit price

23,39 €

Volume discounts

Quantity Unit price
50 + 22,09 €

Stock: 14
Further delivery:
CW 12/2025
