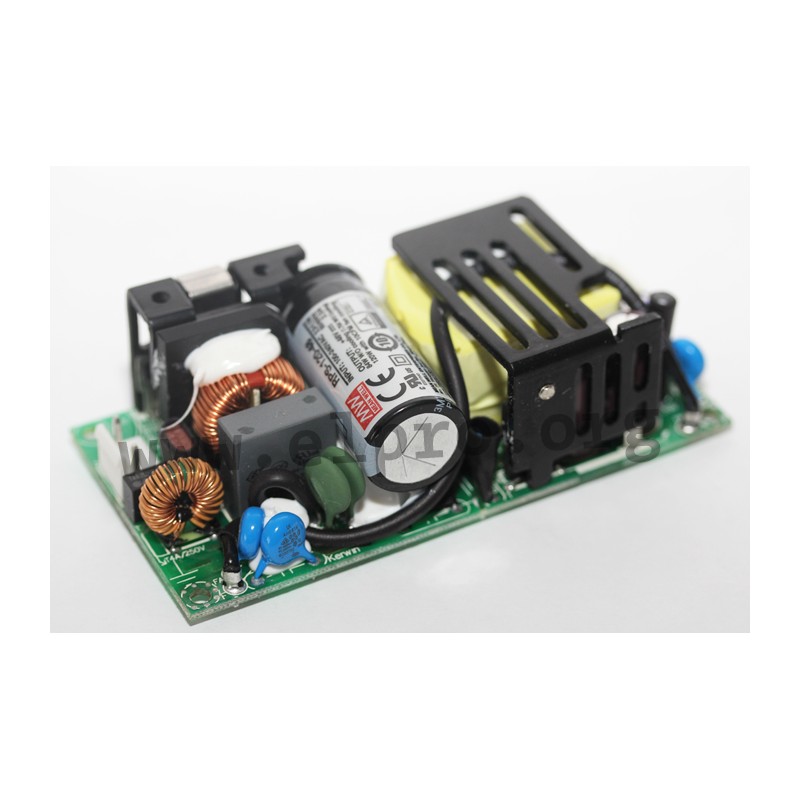

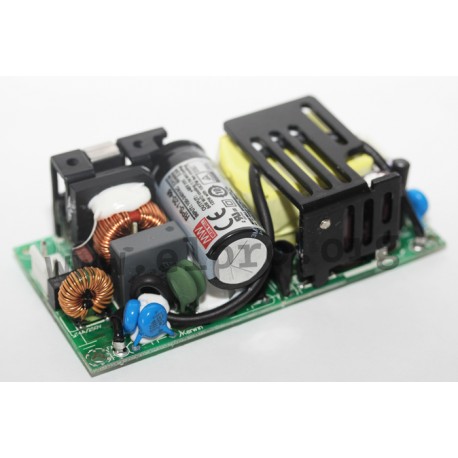

RPS-120-12

Mean Well power supply series RPS-120

Switching power supplies in a 4"x2" housing (open frame) with 120W (10cfm forced air), a universal input, a low no-load power (<0,3W) and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 4000m and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-120-12, RPS-120-15, RPS-120-24, RPS-120-27 and RPS-120-48.

  • single output
  • output: 120 to 121,5W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <150µA (earth) / <80µA (touch)
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 150g
RPS-120 series by Meanwell

RPS-120-12

108268 RPS-120-12 RPS-120-12 4711287427591 Mean Well power supply series RPS-120. Switching power supplies in a 4"x2" housing (open frame) with 120W (10cfm forced air), a universal&nbsp;input, a low no-load power (&lt;0,3W) and a pin strip connection for nylon crimp&nbsp;terminals. These devices are&nbsp;suitable for medical technology applications (2xMOPP)&nbsp;and are protected against overload (auto recovery),&nbsp;overtemperature, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 4000m and&nbsp;comply with&nbsp;EN60601-1, EN55011 class&nbsp;B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RPS-120-12, RPS-120-15, RPS-120-24, RPS-120-27 and RPS-120-48. single output output: 120 to 121,5W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A leakage current: &lt;150&micro;A (earth) / &lt;80&micro;A (touch) overload protection: 115 to 150% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70&deg;C weight: 150g

Specifications

manufacturer
Manufacturer's name RPS-120-12
GTIN 4711287427591
Output voltage [V] 12
Efficiency [%] 88
Output current [A] 10
Output voltage tolerance: [%] 2
Output power [W] 120
Ripple [mVp-p] 120
Data Sheet

Unit price

19,09 €

Volume discounts

Quantity Unit price
50 + 17,79 €

Stock: 42
Further delivery:
CW 12/2025
