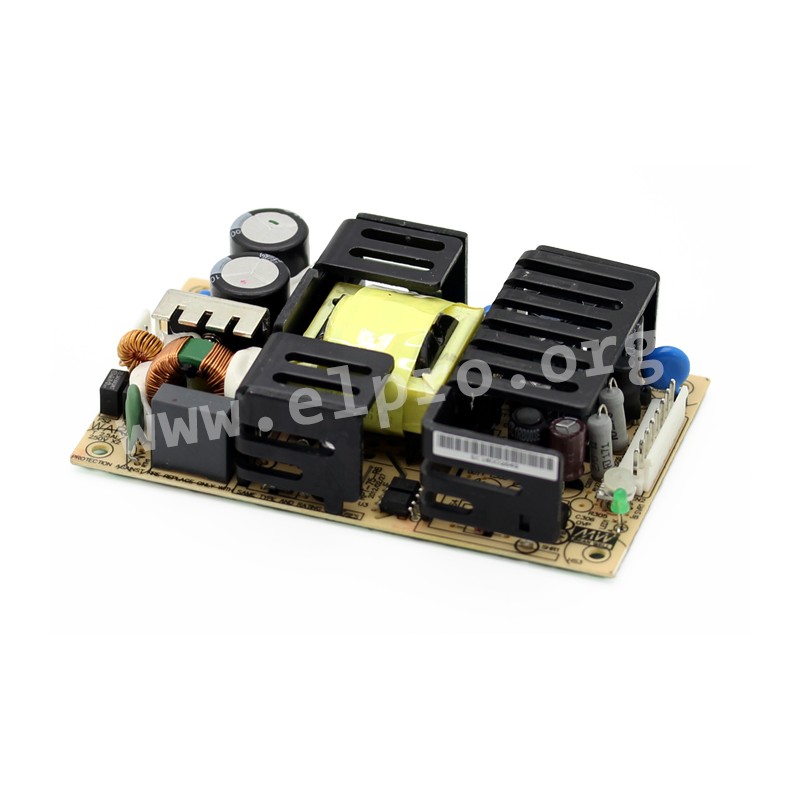

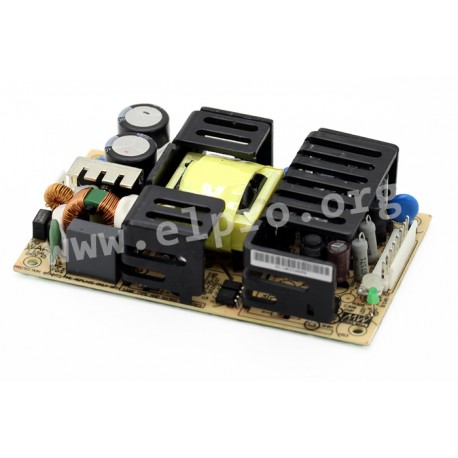

RPD-75A

Mean Well power supply series RPD-75

Open frame type switching power supplies with 75W and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPD-75A and RPD-75B.

  • dual output
  • output: 71 to 73W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • leakage current: <150µA (earth) / <100µA (touch)
  • overload protection: 140 to 180%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • weight: 250g
RPD-75A, Mean Well switching power supplies, 75W, dual output, for medical technology, open frame (PCB), RPD-75 series

RPD-75A

111854 RPD-75A RPD-75A 4711287428574 Mean Well power supply series RPD-75. Open frame type switching power supplies with 75W and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPD-75A and RPD-75B. dual output output: 71 to 73W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 50A leakage current: &lt;150µA (earth) / &lt;100µA (touch) overload protection: 140 to 180% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +70°C weight: 250g

Specifications

manufacturer
Manufacturer's name RPD-75A
GTIN 4711287428574
Output voltage [V] 5 / 12
Efficiency [%] 77
Output current range [A] 1...9,5 / 0,3...4
Output voltage tolerance: [%] 2 / 6
Output power [W] 71
Ripple [mVp-p] 80 / 120
Data Sheet

Unit price

23,19 €

Volume discounts

Quantity Unit price
50 + 21,89 €

Stock: 1
Next incoming goods:
CW 01/2025
20 units

Further delivery:
CW 09/2025
