PSAI 60W 12V 5V

Mean Well power supply series PD-65 and PRD-65

Open frame type switching power supplies with 65W and a universal input. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PD-65A, PD-65B, RPD-65C and RPD-65D.

  • dual output
  • output: 60 to 65,5W
  • input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
  • maximal input inrush current: 40A (PD_) resp. 50A (RPD_)
  • leakage current: <0,75mA (PD_) resp. <1mA (RPD_)
  • output voltage adjustment: +10/-5%
  • overload protection: 73 to 105W
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 240g

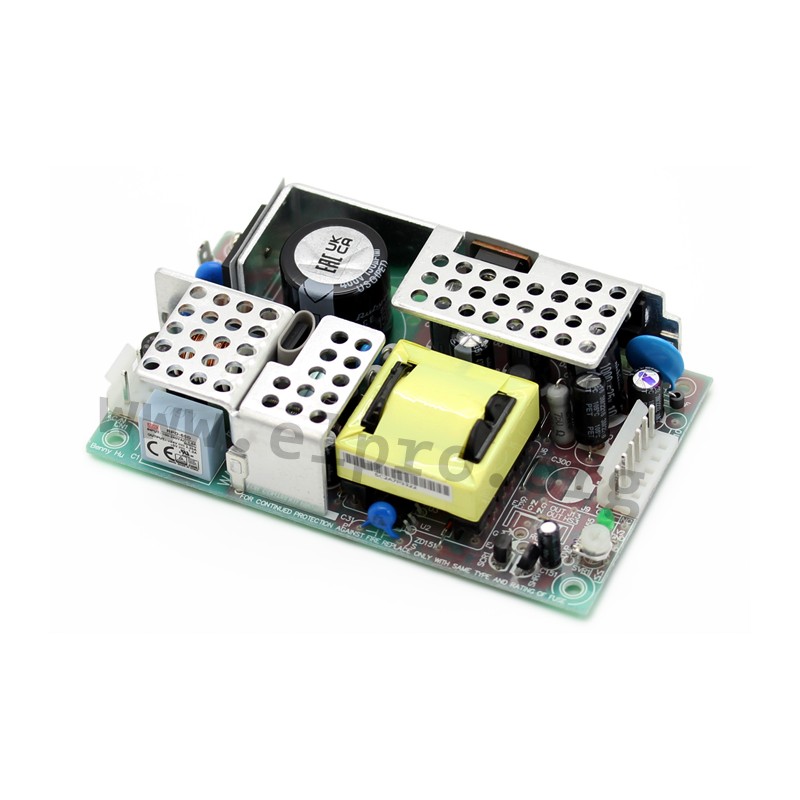

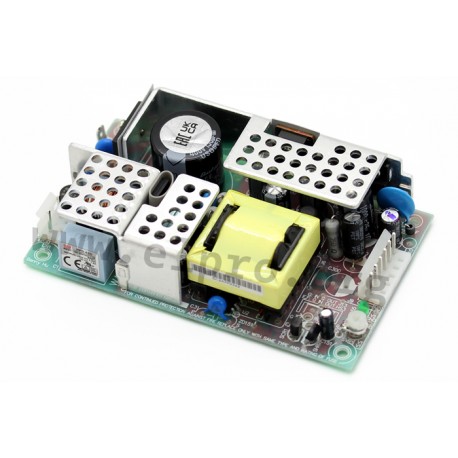

RPD-65C, Mean Well switching power supplies, 65W, dual output, open frame PCB, PD-65 and RPD-65 series

PSAI 60W 12V 5V

30735 PSAI 60W 12V 5V RPD-65C RPD-65C Mean Well power supply series PD-65 and PRD-65. Open frame type switching power supplies with 65W and a universal input. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PD-65A, PD-65B, RPD-65C and RPD-65D. dual output output: 60 to 65,5W input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC maximal input inrush current: 40A (PD_) resp. 50A (RPD_) leakage current: &lt;0,75mA (PD_) resp. &lt;1mA (RPD_) output voltage adjustment: +10/-5% overload protection: 73 to 105W withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 240g

Specifications

manufacturer
Manufacturer's name RPD-65C
Output voltage [V] 5/12
Phase 2 phase
Efficiency [%] 79
Output current range [A] 0...5,8/0...1,5
Output voltage tolerance: [%] ±2/±5
Output power [W] 60
Output rated current [A] 4,5/1,2
Output voltage adjustment [V] 11,4...12,8
Ripple [mV] 120/50
Data Sheet
